1 Hp Water Pump Winding-Water Pump Connection?

In this article, I will show you a 1 Hp Water Pump Winding with Water Pump Connection. When you start to Water Pump Winding first you need to know about full winding data of a 1hp water pump motor. In this article, we are providing Full Winding Data Of A 1 HP Water Pump Motor you can also buy a water pump motor from our recommended link below.

When you start To to 1 HP Water Pump Motor Winding first you need Water Pump Motor Winding Data like motor coil pitch, motor winding turn, motor winding wire, and all other water pump motor winding information.

Water Pump Winding?

The pump is probably the most important part of the pump set because it is the work at which water is obtained. There are two types of pumpsets.

  • Monoblock pump set
  • Coupled Pump Set.

The Monoblock Water Pump runs at a speed of around 2800 rpm and is designed to lift water up to 160 Feet at a higher altitude.

Water pumps connected with the pulley rotate at a speed of 2800 rpm. It is used for a total height of 85 feet.

Motor Winding Kaise Kare?

Kisi Bhi Motor Ko Winding karne ke liye sabse pahle aapke pass used Motor Ka Winding Data Hona bahut jaruri hai Jaisa ki use Motor Ki Coil Pitch Kitni Rahegi use Motor Mein Coil Turns kitne Dali jaayengi, motor winding mein kaun sa tar number dala jaega Agar aapke pass yah Sabhi information hai tab aapke pass Yeh question motar winding kaise kare Nahin rahega.

Motor Winding Kaise Kare.
Motar Winding Kaise Kare.

Ek motor winding karne ke liye sabse pahle motor winding stator ko acchi Tarah Se saaf Kiya jata hai usko Baad motor mein insulation paper Dala jata hai 7number insulation paper, 10 number insulation paper, Green Sheet, f class insulation paper ho sakta hai.

Kisi bhi motor mein paper dalne ke bad aapko Us motor ke banane ki jarurat hoti hai, motor winding coil banane ke bad is motor ki coil pitch ke anusar aap use motor mein Coil Dalege, Jo ke alag alag motor ke sabse alag alag ho sakti hai.

Motor winding karte samay Jab aap ki motor mein sabhi Motor Windings Coils Dar Jaate Hain Uske bad Jo next step Hota Hai vah Hota Hai Motor Winding Connection karna.

Motor Winding Connection?

Jab Ham Kisi bhi motor ki winding kar lete hain Uske bad Jo next Step Hota Hai vah Hota Hai Motor Winding Connection, jo ke alag alag motor ke Hisab se alag alag Tarah Ke ho sakte hain.

Motor winding connection Kai Prakar ke Hote Hain Kisi bhi motor ke connection ko use motor ki winding, Motor Winding Pole, Motor Winding RPM ke hisab se banaya jata hai. Aage ham janenge Motor Winding Connection kitne Prakar ke Hote Hain.

  1. Single phase motor winding connection.
  2. 3 phase motor winding connection.
  3. Series Parallel Winding Connection.
  4. Star Delta Motor Connection.
  5. Slow Speed Motor Connection.
  6. Medium Speed Winding Connection.
  7. High Speed Motor Winding Connection.
  8. Water Pump Connection?

1 hp water pump winding?

Aaj ham 1hp water pump motor ki winding Karenge main aapko Ek 1 HP water pump winding data bataunga is water pump winding data ki help se a aap 1 water pump motor ki winding bahut hi aasani se kar sakte hain.

Aur is article ke last Mein Main aapko Ek water pump connection diagram bhi dunga Jisko Dekh Kar aap aap Kisi bhi water pump motor ke connection bahut hi aasani se kar sakte hain.

Aaj Jo ham 1 HP water pump winding karne ja rahe hain vah water pump motor 2 pole motor winding per kam karti hai Jiske RPM 2800 Hote Hain, is 1 HP Water Pump Motor Ki Coil Pitch … 1-6,1-8,1-10,1-12 Rahegi.

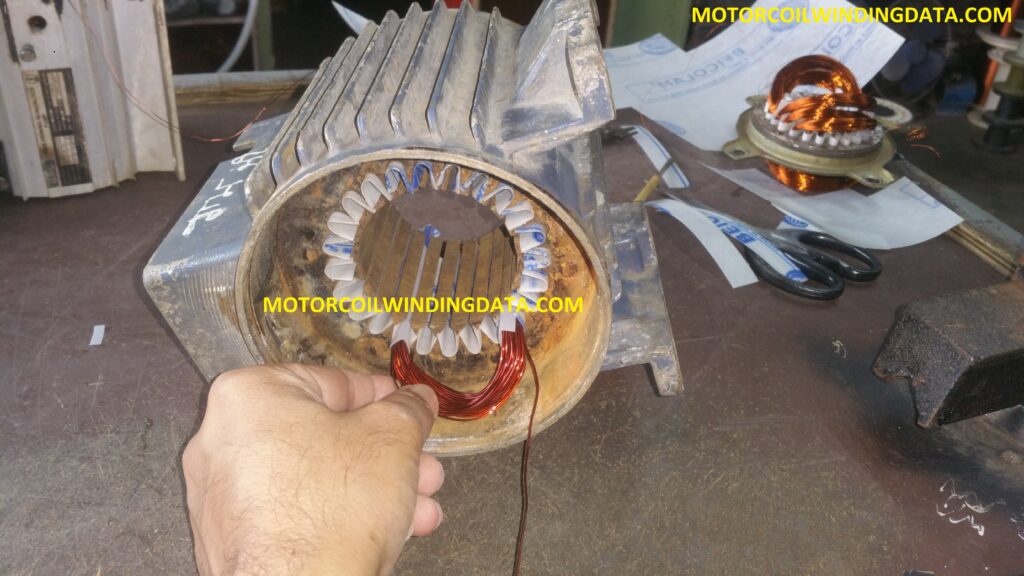

1 HP water pump winding mein ham total 4 Coils Dalenge jismein 2 core wire motor ki running winding ke Honge Jo ke pahle Dale Jaenge Uske bad do hi Coils water pump motor ki starting winding ke Honge.

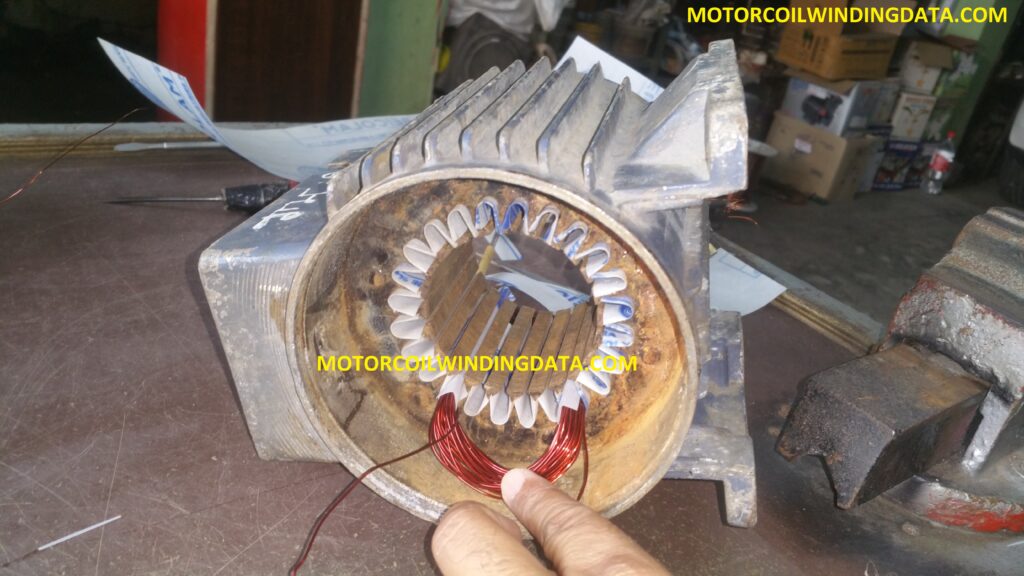

1 Hp Motor Stator Details.

  • Motor Stator Slot = 24
  • Motor Core Length = 3 Inch
  • KW = 0.75
  • Hp =1Hp
  • Speed Rpm = 2870
  • Size = 25+25

1 Hp Water Pump Winding Data?

मोटर रनिंग वाइंडिंग डाटा यहाँ देखें.

RUNNING-PITCH  —– RUNNING TURNS

  • 1-6 40 TURN
  • 1-8 45 TURN
  • 1-10 50 TURN
  • 1-12  50 TURN
  • RUNNING WIRE NUMBER Swg                 21 (single)
  • Total Running weight            300+300 =600 gm



1 Hp Motor Winding Data?
1 Hp Motor Winding Data?

वाटर पंप मोटर स्टार्टिंग वाइंडिंग यहाँ देखें.

RUNNING-PITCH  RUNNING TURNS

  • 1-10 80 TURN
  • 1-12  85 TURN
  • Starting Wire Number Swg       =     23 Number ( Copper Wire )
  • Starting Wire Weight     350 gram



1 hp water pump winding data.(रनिंग वाइंडिंग )

Coil PitchCoil Turns.Swg. Wire Number.Winding Wire WeightWinding Wire.
1-640 Turns.21 Number Single Wire.300 Gram.Copper Wire
1-845 Turns21 Number Single WIre.300 GramCopper Wire.
1-1050 Turns.21 Number Single Wire.300 Gram.Copper Wire Single.
1-1250 Turns.21 Number Single Wire.300 GramCopper Wire.

1Hp Pump Starting Winding Data Here.

Coil PitchCoil Turns.Swg. Wire Number.Winding Wire WeightWinding Wire.
1-1080 Turns.23. Number Single Wire.175 Gram.Copper Wire Single.
1-1285 Turns.23. Number Single Wire.175 GramCopper Wire.

Water Pump Connection?

Jaisa Ke aapane Dekha ki Humne is water pump motor mein total 4 Coils Dale Hain jinmen se 2 Coils water pump motor ki running mining ke aur do hi starting mining Ke Hain.

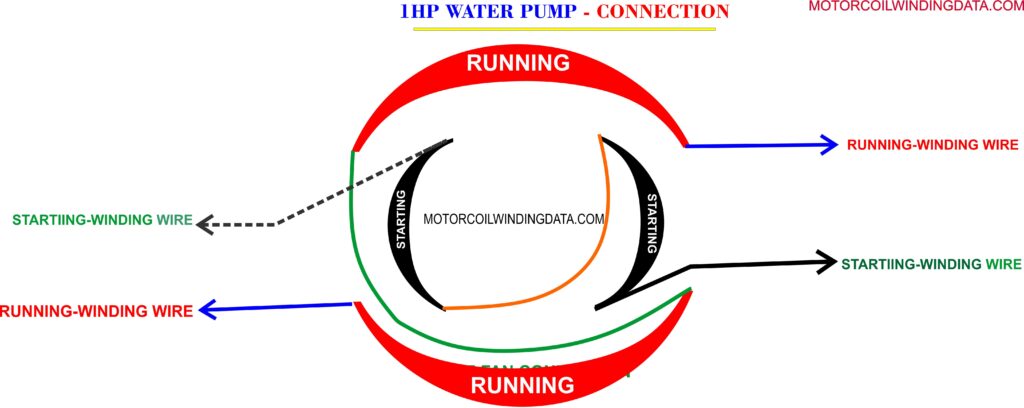

Jab Humne Water Pump Motor Winding karli Uska next step Hamara Water Pump Connection Ka Hota Hai.Humne a water pump winding main 4COILS ka Ek Coil Set Dala Hai jismein ek Wire Jab Humne Coil dalna start Kiya tab Nikali aur doosri wire Jab Humne last Coil Dala tab Nikali Kahane ka matlab hai running mining se 4 wire Bahar Aayi, ab aap niche Diye Gaye diagram Ko Dekhkar do wire ko Ko joint Kar dijiye aur Baki ki ki do Vaya ko aap aap aap bahar nikal Lijiye.

Water Pump Connection?
Water Pump Connection?

Water Pump Connection.

How do you check the winding on a water pump?

Jab Bhi aap Kisi bhi water pump motor ki winding ko check karna chahte hain sabse pahle aapko yeh jaanch Lena chahie use water pump ki motor se Kitni wires Bahar a rahi hai.

Normally water pump mein 2 winding hoti hain Ek running winding aur dusri starting Winding Kisi bhi water pump se 4 Wire Bahar aaenge jinmen se do wires water pump motor ki running winding ki hongi aur do hi tar water pump ki starting winding ki Hogi.

Lekin Aaj Kal jyadatar water pump thermally protected Hote Hain jis Karan unmen se a 2 Wire Auto Cut Means Thermostat ki bhee Bahar aaenge Jis vajah Se aapko Thodi Si confusion ho sakti hai lekin aap niche Diye Gaye video Ko Dekhkar Antar ko bahut hi aasani se samajh sakte hain.

How much HP pump do I need?

Agar aap ek normal ghar mein rahte hain Kahane ka matlab chote ghar mein rehte hain aur aap ki family bhi Chhoti hai Kahane ka matlab 4 se 5 log Hain kab aapko Ek 0.5 HP water pump Le Lena chahiye.

aur agar aap ki family badi hai aur aapko Jyada Pani ki jarurat hai tab aapko 1 HP ke water pump mein jana chahie Kahane ka matlab 1 HP water pump motor purchase karna chahiye.

Article Mein Humne aapke liye bahut hi acche water pump recommended Kiye Hain aap ek bar unko dekh sakte hain.

Who the best water pump? 1‑havells 1 hp 2‑v guard 1hp 3‑crampton 1hp?

Vaise to Sabhi waterpump acche Hain Chahe vah Havells company ka ho Chahe vah V-Guard company ka Ho Chahe vah Crompton Greaves company ka ho, lekin Jab Bhi aap koi bhi water pump per change karna chahte hain to sabse pahle aap mujhe dekhna chahie ki kis company ka service centre aapke city mein available hai.

Kyunki Agar aapka water pump kharab ho jata hai tab aapko use water pump ko service centre Mein Hi Lekar jana padega Agar service centre aapke City Se Dur hai tab aap ko pareshani ho sakti hai.

Ek Achcha water pump Lene se pahle use water pump Banane wali company ki after-sales service ke bare mein Janna bahut Jaruri Hota Hai.

1 Hp Water Pump Capacitor?

1hp Ki Pani wali motor mein jyadatar 20 MFD value ka capacitor Lagaya jata hai Jo Ek Running Hota Hai aur Motar ke sath lagatar kam karta hai.

1hp water pump capacitor connection diagram Humne niche Diya Hua Hai usko dekh kar aap bahut hi aasani se 1hp water pump connection kar sakte hain.

1 Hp Water Pump Capacitor?
1 Hp Water Pump Capacitor?

How many amps does a 1 hp Water pump draw?

1hp water pump motor normally 5 ampere Se Lekar 8 Current Ampere tak leti hai. 1 HP water pump 2800 RPM per kam karta hai aur yeh high speed motor hoti hai.

Water Pump Winding Video.

Water Pump Winding Video.

Water Pump Repair?

water pump repair

Water Pump Seal Replacement?

how to replace water pump seal.

Faq-Water Pump Common Questions & Answers?

How do you check the winding on a water pump?

If You Want to check the Motor Winding of any Water Pump you need to check Water Pump Motor Wiring.

How do you check the winding on a water pump?

What is HP water pump?

In The Normal Domestic Water Pump Mostly use 0.5 Hp water pump Motor.

How do you test a single phase water pump?

in this video we have show how to check motor winding of Single Phase Water Pump & tulu pump motor.

How do you test a single phase water pump?

How do you check motor continuity?

motor continuity,fan repair | ceiling fan winding repair with a multimeter, motor continuity | how to repair motor continuity #ceilingfanrepair ceiling fan repair in Hindi.
