Winding of cooler motor. There are two types. One is single speed cooler motor winding. And the other is Three speed cooler motor winding. In single speed cooler motor winding the motor runs at the same speed. We cannot increase or decrease the speed of the cooler motor according to our needs. And we can increase or decrease the RPM in the second 3 speed cooler motor winding Can do. In today’s article, we will know how we can do the winding of a three speed cooler motor.
Table of Contents
- 1 What is the cooler motor stamping size?
- 2 What is 3 speed cooler motor winding data?
- 3 3 Speed cooler motor coil winding ?
- 4 Cooler motor starting winding data?
- 5 Which capacitor is used in cooler?
- 6 What is 3 speed cooler motor connection?
- 7 3 Speed Cooler Motor पूरा वाइंडिंग डाटा हिंदी में देखने के लिए यहाँ क्लिक करें
- 8 3 Speed cooler motor winding video?
- 9 3 Speed cooler motor winding connection video?
- 10 36 Slot cooler motor winding video?
- 11 FAQ on cooler motor winding:

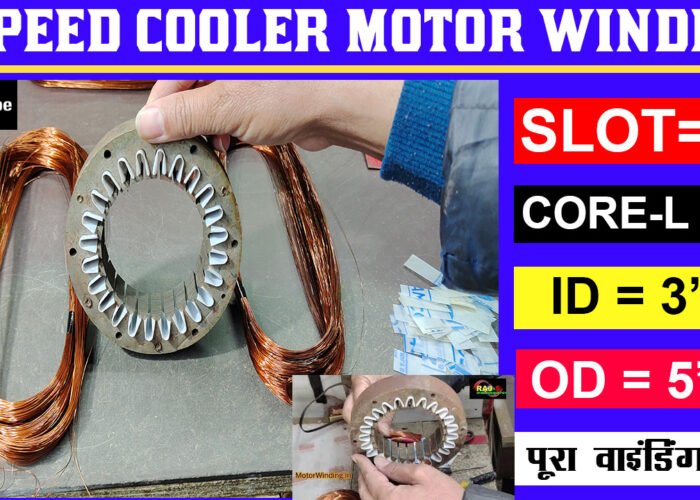

What is the cooler motor stamping size?
| Slot | 24 |
| Rpm | 1440 |
| Watts | 370 |
| Voltage | 220-240 (Single Phase Supply ) |
| Capacitor | 4 Mfd |
| Core Length | 1 Inch |
| Inner Diameters | 3 Inches |
| Outer Diameter | 5 Inches |
| Pole | 4 Poles |
| Copyrights | Motorcilwindingdata.com |
| Winding Wire | Copper Winding |
What is 3 speed cooler motor winding data?
When you making a Coil with speed in 3-speed cooler winding, you will first take 32 number wire, and first, you will put 40 Winding Turns with 32 Number Wire after that one Loop will be extracted, then make 60 Winding Turns will be put by same 32 Number Wire. After that, you need to use the 29 Number Wire, and done 100 Winding Turns will be put from that 29 number wire.
There are usually two types of winding in cooler motor. One is running coils winding and the other is starting coil winding. Different data are inserted in both. The number of wire in running winding and the number of wire in starting are different. The running winding always has a thicker wire number than the starting winding.
| Cooler Motor Running Winding Pitch | 1-4 & 1-6 Coil Pitch |
| Running Winding Turns | 150 – 300 |
| Coils Round | 1-4 pitch = ( 1 Round ) |
| Coils Round | 1-6 pitch = ( 2 Round ) |
| Standard Wire Number | 29 Number |
| Winding Wire Type | Copper Wire Winding |
| Coil Size | 25 Inch. |
3 Speed cooler motor coil winding ?
| 1. | First start with | Wire No —-32 —- -Turns ==40 (speed coil) |
| 2. | Next Loop with | Wire No —32 —— Turns ==60 (speed coil) |
| 3. | Next Loop with | Wire No —-29 —– -Turns===100 (speed coil) |
Cooler motor starting winding data?
| Cooler Motor Starting Winding Pitch | 1-4 Coil Pitch |
| Starting Winding Turns | 155 – 310 |
| Coils Round | 1-4 pitch = ( 1 Round ) |
| Coils Round | 1-6 pitch = ( 2 Round ) |
| Standard Wire Number | 33 Number |
| Winding Wire Type | Copper Wire Winding |
| Coil Size | 25 Inch. |
Which capacitor is used in cooler?
Mostly 4 mfd capacitor is used in cooler motor. But where the voltage is low, we can also use 6 mfd capacitor like in village.
Mostly 4 mfd capacitor is used in cooler motor. But where the voltage is low, we can also use 6 mfd capacitor like in village.
What is 3 speed cooler motor connection?
There are two types of connection of a three speed cooler motor winding. In one we take out all the three speed from the same coils. And in the second type. We take out the speed wire from all the four coils.
In 3 Speed Cooler Connections you will pull out 6 wires, the Blue wire will be common wire, and white wire will be SLOW-SPEED, and Red wire will be MEDIUM-SPEED, and Black wire will be HIGH-SPEED. And besides this, there will be two (2) more wires which will be the stars of Capacitors Wire.
3 Speed Cooler Motor पूरा वाइंडिंग डाटा हिंदी में देखने के लिए यहाँ क्लिक करें
3 Speed cooler motor winding video?
3 Speed cooler motor winding connection video?
36 Slot cooler motor winding video?
FAQ on cooler motor winding:
Normal cooler motor runs on a 1400 Rpm.
Uncooled motors radiate heat into the machine housing in which they are mounted and inside the surrounding by operation. Air-cooled motors have a fan that blows air over the motor housing, thereby cooling it. Liquid cooling motors are cooled with water or oil that flows through the cooling channels in the motor.
a 24 & 36 slot motor with a single speed is best for a cooler.
The difference between 24 slot cooler motor & 36 slot is only with slots.
Hello, this is due to the clockwise motion of the motor. The blades of the fan are attached to the motor so the blades rotate in the opposite direction of the clock.
Incorrect voltage supply: Too many volts or too few volts can damage the motor. When your motor doesn’t have the right voltage support, it needs to work hard to perform, causing the parts to overheat. A bad surrounding environment: A motor needs room to breathe so that it can perform its best.
This motor can also usually run on an inverter, it has a double ball bearing, it is 270 watts with a high speed of 1400 rpm.
A private cooler. This type of air cooler is made for small spaces and provides good portability. …
Tower cooler. Tower air coolers are capable of cooling a large area or space and thus they are also very powerful. …
Window cooler. …
Desert cooler.
Copper is the most common material used for motor winding construction. This is mainly due to its high power conductivity (5.96 x 107 S/m) and relatively low cost.
Copper is a great option for motor winding because of its high conductivity and relatively low cost, but it is also a very dense and heavy material; This is another problem for electric vehicles or motors used in airplanes, which require a light weight.
Act as an electronic filter between high and low frequency signals. Stop the DC voltage by limiting the current flow once the capacitor is charged.
Normally in India the cooler motor capacitor price is 40-40rs
Fans and coolers use induction motors. A capacitor is required to operate these motors. This is known as a split-phase capacitor.
How to calculate the motor RPM. To calculate the RPM for an AC induction motor, you multiply the frequency in Hz by 60 – for the number of seconds in a minute – by two for negative and positive pulses in a circle. Then you divide the number of motor poles by: (Hz x 60 x 2)/ Number of poles = no-load RPM.
Watts: Most air coolers run on a power consumption of 150-300 watts. This means that when an air cooler works, it consumes electricity at a rate of 150 to 300 watts per hour.
