All Table Fan Winding Data.Table Fan Winding Diagram

All Table Fan Winding Data.Table Fan Winding Diagram.

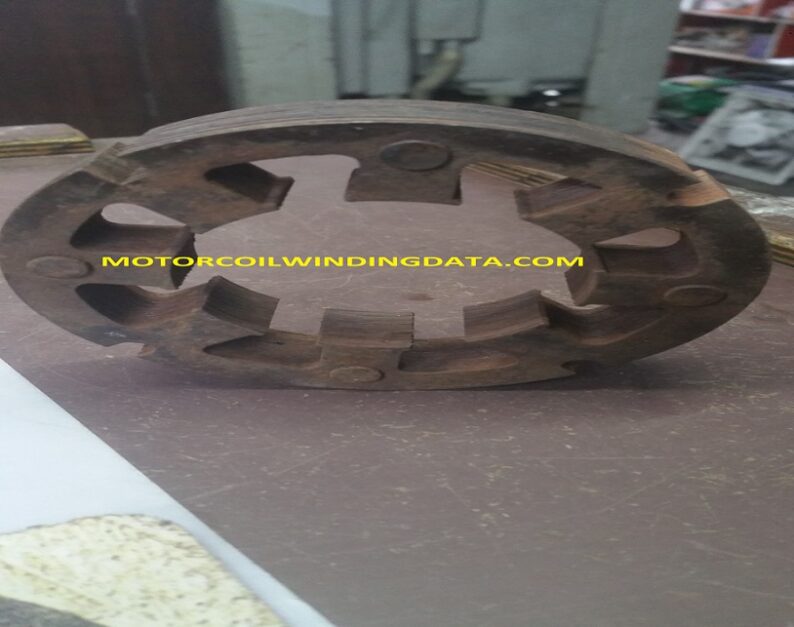

In This Article, we provide All Table Fan Winding Data with full detail of Table Fan Connection & 24 Slot Table Fan Winding Data. There are 8 SLOTS in the Table fan Motor and 8 Coils Will Be Inserted in this Table Fan Motor, 4 are of COILS running winding and four are of COILS starting winding. We are also Cover Table fan winding diagram,

Table Fan Winding.

When we are doing the winding of the table fan we will put on the 36 number winding wire, and with the 36 number winding wire we put Table Fan Winding Turns 1000 TURNS which will be the TURNS of the running winding of the table fan winding and the Starting winding of the table fan. We will Insert 960 TURNS and in this Table Fan Motor, we will enter 36 NUMBER Copper Winding wire & Table fan winding diagram

All Table Fan Winding Data.Table Fan Winding Diagram
Table Fan Winding.

Table Fan Winding Data.

SLOTS         =    8

CORE LENGTH       = 20-MM

Stamping Size = 0.80 INCH

RPM = 1400

POLE = 4

Coil-Pitch  = 1-2

Coil-Turns  = 1000 Turn

SWG Wire Number = 36 Number (Copper-Wire)

Total Running Coils = 4pc

Total Starting Coils = 4pc

Table Fan Winding Data.

Usha Table Fan Winding Data.

SLOTS 8
CORE SIZE 18 MM

COIL PITCH 1:2

Running Winding Data Yaha Dekhen.


TOTAL RUN COIL =4

SWG Wire Number = 36
COIL TURNS =1050

Starting Coil Winding.

TOTAL Starting. Coils 4

SWG Wire Number 37
COIL TURNS 1050

Bajaj Table Fan Winding Data.

SLOTS         =    8

CORE LENGTH       = 6 SOOT

RPM = 1400

POLE = 4

Coil-Pitch  = 1-2

Coil-Turns  = 1000 Turn

SWG Wire Number = 36 Number (Copper-Wire)

Orient Table Fan Winding Data.

SLOTS         =    8

CORE LENGTH       = 33mm

RPM = 1400

POLE = 4

Running Coil-Pitch  = 1-3

Running Coil-Turns  = 700 Turn

SWG Wire Number = 35 Number (Copper-Wire)

Staring Coil-Pitch  = 1-3

Staring Coil-Turns  = 650 Turn

SWG Wire Number = 36 Number (Copper-Wire)

Rally Fan Table Fan Winding Data.

SLOTS         =    8

CORE LENGTH       = 33mm

RPM = 1400

POLE = 4

Running Coil-Pitch  = 1-3

Running Coil-Turns  = 650 Turn

SWG Wire Number = 35 Number (Copper-Wire)

Staring Coil-Pitch  = 1-3

Staring Coil-Turns  = 600 Turn

SWG Wire Number = 35 Number (Copper-Wire)

Cinni 4Coil Table Fan Winding Data.

SLOT = 4

COIL = 4

RPM =1440

Core Length Stator Size = 25MM

COIL PITCH = 1:2

COIL TURNS = 450 Turn.

Swg Wire Number = 28 Number (Copper-Wire)

Cinni Table Fan Winding Data.

SLOTS         =    8

CORE LENGTH       = 6 SOOT

RPM = 1400

POLE = 4

Running Coil-Pitch  = 1-2

Running Coil-Turns  = 1000 Turn

SWG Wire Number = 36 Number (Copper-Wire)

Staring Coil-Pitch  = 1-2

Staring Coil-Turns  = 1000 Turn

SWG Wire Number = 36 Number (Copper-Wire)

Crompton Table Fan Winding

Stator Core Size = 27mm

Stator Slots = 8.

RPM = 1400

POLE = 4

Running Winding Coil-Pitch  = 1-3

Running Winding Coil-Turns  = 750 Turn

SWG Wire Number = 36 Number (Copper-Wire)

Staring Coil-Pitch  = 1-3

Staring Coil-Turns  = 700 Turn

SWG Wire Number = 36 Number (Copper-Wire)

Khaitan Table Fan Motor Winding Data.

SLOTS         =    8

CORE LENGTH       = 25mm

RPM = 1400

POLE = 4

Coil-Pitch  = 1-2

Coil-Turns  = 650 Turn

SWG Wire Number = 32 Number (Copper-Wire)

Nimmi Table Fan Winding.

Stator Core Size = 33mm

Stator Slots = 8.

RPM = 1400

POLE = 4

Running Winding Coil-Pitch  = 1-3

Running Winding Coil-Turns  = 800 Turn

SWG Wire Number = 35 Number (Copper-Wire)

Staring Coil-Pitch  = 1-3

Staring Coil-Turns  = 800 Turn

SWG Wire Number = 35 Number (Copper-Wire)

Emco Table Fan Winding Data.Vintage emco desk fan Winding.

  • Stamping stack length = 35MM
  • Total Number Of Slots = 8
  • Total Number Of Coils = 8
  • Motor RPM = 1440
  • POLE = 4
  • Running Coil-Pitch  = 1-2
  • Running Coil-Turns  = 860 Turn

SWG Wire Number = 35 Number (Copper-Wire)

  • Staring Coil-Pitch  = 1-2
  • Staring Coil-Turns  = 860 Turn

SWG Wire Number = 35 Number (Copper-Wire)

24 Slot Table Fan Winding Data.

  • Stamping Stack Length = 53MM
  • Total Number Of Slots = 24
  • Total Number Of Coils = 8
  • Motor RPM = 1440
  • POLE = 4
  • Running Coil-Pitch  = 1-5
  • Running Coil-Turns  = 200 Turn

SWG Wire Number = 30 Number (Copper-Wire)

  • Staring Coil-Pitch  = 1-5
  • Staring Coil-Turns  = 200 Turn

SWG Wire Number = 30 Number (Copper-Wire)

16 Slot Table Fan Winding Data.

  • Core length             =   1 inch 2 soot
  • Inner Diameter     =   1 inch   6 soot
  • Outer Diameter    =   3 inch

3 Speed Table Fan Winding Data.

In the 3 Speed Table Fan Winding Diagram high speed wall fan motor winding, you take 36 number copper wire and you put 30 Turns from it, after that, you bring 36 number wire again, then you put 45 Turns.

Now you have to take a Winding Wire of 34 numbers, with that 34 Number Copper Wire you put 350 Turn In Table Fan Winding and Table Fan Winding Diagram Pdf in the remaining 3 coils you put 450 Table Fan WindingTurn with 34 number copper wire.

In the Three Speed Wall Fan Winding, first of all, you take a 36 number copper wire, you put 30 turns from it. After that a loop coming out of the same wire, you put another 45 Coil Turn with the same 36 number wire. After that, you take a 34 number wire. You put 350 turns with the number wire.

  • 36 नंबर = 30 टर्न
  • 36 नंबर = 45 टर्न
  • 34 नंबर = 350 टर्न
  • रनिंग वाइंडिंग के बाकी बचे एक कॉइल्स में आप   टर्न = Turn   410     410.

3 speed table fan winding data by motorcoilwindingdata.com

3 Speed Table Fan Winding Diagram.

Here you can see 3-Speed Table Fan Winding Diagram and Wall Fan Motor Connection Diagram,3 speed fan motor wiring diagram.16 Slot 5 wire table fan winding.

3 speed table fan winding diagram
3 speed table fan winding diagram by motorcoilwindingdata.com

Table Fan Connection.

Is diagram Mein Humne bataya hai ki aap Kaise Ek Table Fan Connection kar sakte hain table fan connection Karna Hota Hai, Table fan winding connection aap 1-3 wire ko join kar sakte hai. Niche Humne Ek table fan connection diagram Banaya Hai Jisko Dekh Kar aap bahut hi aasani se table fan winding connection kar sakte hain diagram Humne Abhi bataya hai ki aap Table Fan Ki Motor ko Capacitor ke Sath Kaise joint kar sakte hain.

Table Fan Connection.
Table Fan Connection by motorcoilwindingdata.com

Table Fan Connection by motorcoilwindingdata.com

Table Fan Winding Machine.

Vaise to Indian market mein abhi tak table fan ko automatic winding karne ke liye koi bhi machine available Nahin Hai, Agar Kahin per table fan winding machine available hai to uska price bahut hi jyada hai joki Aam dukandar ki pahunch se bahut dur hai.

Niche Di Gai table fan winding machine se aap sirf aur sirf table fan motor ke Koyal hi banaa sakte hain Koel banane ke bad aapko vah Khud Hi dalne Honge call dalne ke bad aapko table fan motor ke connection bhi Khud Hi karne Honge.

Table Fan Winding Machine Price?

1/3 Table Fan Coil Winding Machine Price. Full Casting Body All Gears made from Casting. With Analog meter and Coil Winding Count

Brand NameVarun
Number of Items1
Part Number9475
Table fan winding machine.

Agar aap 1 table fan ki motor key winding ke bare mein vistar se Janna Chahte Hain Uske liye niche Diye Gaye link per click Karke aap table fan ko Banane car video dekh sakte hain.

Table Fan Winding Farma.

Table fan winding karne ke liye Kisi special farma ki jarurat Nahin Hoti, jyadatar mechanic, motor winder Khud Hi Farma banaa Lete Hain Kuchh log wood board Sa banne farma use karte hain, aur kuchh mechanic bhai bakelite se Bane hue Farma use karte hain main aapko request Karunga ki aap apne Hath Se Kd Hi Table Fan Winding Farma banaen Kyunki usse aap bahut hi acchi Tarah Se table fan Winding Ke According set kar sakte hai jisse aap bhut aasani se Table Fan Winding Kar Sakte hai.

Lekin Fir Bhi Agar aapko Khud Pharma Banane Mein dikkat a rahi hai to aap niche Diye Gaye link se bahut aasani se table fan winding Pharma per change kar sakte hain.

Table Fan Price In India.

Indian market mein table fan ka price 750 INR se start ho jata hai jo ke near about 4000 INR Tak Chala Jata Hai.

Table fan 750 INR se start Hote Hain va local market main local manufacturer dwara banae Jaate Hain Kyunki Kafi Jyada Indian market ko cover Karte Hain Unki input cost kam hoti hai material ki quality branded manufacture se compare Karenge to Thodi kam rahti hai isliye Unki costly kam rahti hai.

Niche Diye Gaye link mein Humne Bharat ke Kuchh acche table fan manufacture ke table fan dikhayen Hain aap unke price de sakte hain aur unko Agar Chahe to purchase bhi kar sakte hain.

  1. Usha Table Fan Price In India.
  2. Bajaj Table Fan Price.
  3. Crompton Table Fan Price.
  4. Havells Table Fan Price
  5. Orient Table Fan Price.

Top 3 Table Fan In India.

How can I check my table fan winding?

अगर किसी भी टेबल फेन मोटर में 3 तार निकली गयी हो तो हम कैसे पहचाने गए के कॉमन तार कौन सी है इस वीडियो में इसी बारे में बताया गया है. how to identify common wire of Table fan Winding, Ceiling Fan, Table Fan, and All Types Of Motors Common Wire Connection को कैसे पहचाने // Ap Fan, ceiling fan, table fan, etc, 3 wires connection Visit our website for More Motor Rewinding Data here https://www.motorcoilwindingdata.com

How can I check my table fan winding?

How do you check fan motor winding?

If 3 wires have come out in any table fan motor, then how can we identify which is the common wire in this video?

how to identify common wire of Table fan Winding, Ceiling Fan, Table Fan, and All Types Of Motors Common Wire Connection को कैसे पहचाने // Ap Fan, ceiling fan, table fan, etc, 3 wires connection Visit our website for More Motor Rewinding Data here https://www.motorcoilwindingdata.com

How do you check a fan motor winding with a multimeter?

How to Identify a Hot, Neutral, and Ground Wires using Digital Multimeter and prove it, how to find washing machine common wire with series lamp washing machine motor common wire how to find with some simple steps.

visit our website for more winding data here:– https://www.motorcoilwindingdata.com/

How do you check a fan motor winding with a multimeter?

How do you test a fan motor?

How to test a Fan Motor Crompton brisk air fan motor plastic blades exhaust fan winding check.

How do you test a fan motor?

How do you determine the starting and winding of a ceiling fan?

in this video our team show ceiling fan 3 wire connection of three-wire.| Ceiling fan की मोटर की कॉमन तार का कैसे पता करे?

How do you determine the starting and winding of a ceiling fan?

How do you rewind a fan motor?

How do you rewind a fan motor?

In this video, we have described how to High speed wall fan motor winding in Three speed. ✅16 slot 6 wire table fan winding
