Ceiling Fan Wiring Connection Diagram Pdf.

How To Wire A Ceiling Fan | Ceiling Fan Wiring.

Spread the love

Ceiling fan wiring is a very easy task, condition that you should know about the color code of ceiling fan wiring. In this post, we have explained with the Ceiling Fan Wiring Diagram. In Ceiling Fan you should know which wire is the common wire from the motor of the ceiling fan.

which wire is coming from the Running winding and which wire is from the starting winding. Is coming In this post, we have told in detail about how to find the common wire, in the ceiling fan below, the red wire is a common wire, the Yellow Wire is from the running winding and the Black wire is from the Starting winding.

Ceiling Fan.

  • 3 Wire coming from the ceiling fan motor.
  • Red wire is Common Wire.
  • Yellow Wire is Running winding wire.
  • Black wire is starting winding wire.

Ceiling Fan Regulator Connection Diagram



ceiling fan regulator connection Diagram
ceiling fan regulator connection Diagram

Ceiling Fan Connection

Join the white wires (neutral wires) from your Ceiling and fan together. Connect the green wire to a household floor cable (copper/bare wire). Join the black wires together. Last, connect the blue wires together, or the blue wire to the black cable for lighting. This will allow you to bring a mild kit later on without needing to rewire the fan. Turn the power back on and examine the fan.


Typically used if there isn’t any switch located in the room where the fan/light is going to be found. This option allows you to pull electricity to your enthusiast and/or the light from 1 link to a local power source.
This procedure implies that you would be relying upon the pull chains included with your lover to turn on the light and the fan. For rooms with no switches, ceiling fan remotes can relieve the requirement of employing a pull string.

Wiring Ceiling And Light With One Switch



Wiring Ceiling And Light With One Switch
Wiring Ceiling And Light With One Switch

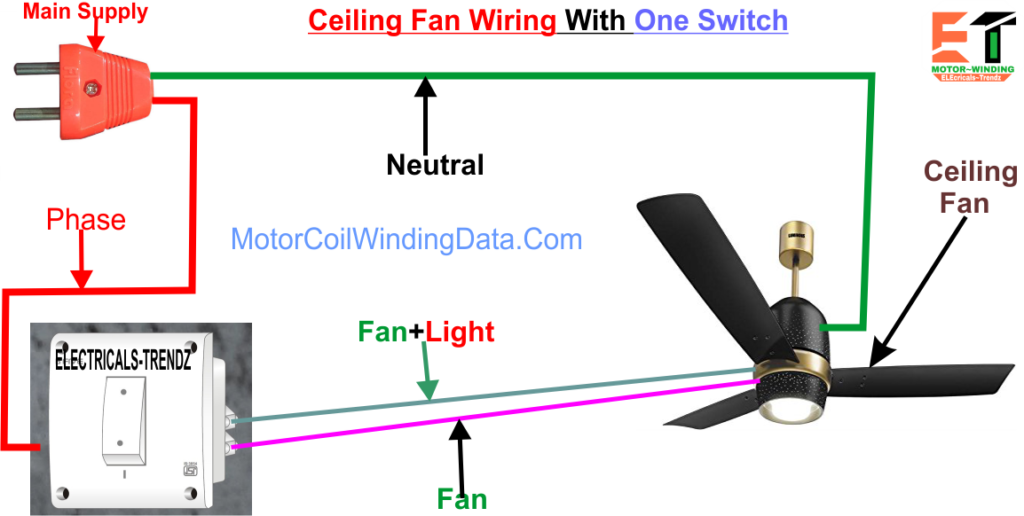

This procedure allows you to turn on the fan and the light from a single wall switch, cutting out the requirement to use the pull chain each time you wish to adjust the fan.

  • Green wire is the Neutral Wire.
  • Red Wire is the Phase Wire. (power supply)
  • Grey wire is the FAN+LIGHT Wire.
  • Pink wire is the Common Wire.



Wiring Ceiling And Light With Separate Switch



Ceiling fan-Wiring Connection-Diagram
Ceiling fan-Wiring Connection-Diagram



Ceiling fan wiring with Capacitor





Ceiling Fan Wiring With Remote.



ceiling fan remote connection connection
ceiling fan remote connection connection

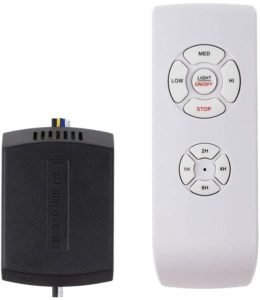

Most newer fans arrive with Ceiling fan remotes for ease and convenience. The receiver is put inside the body of this fan and the control will sit on the walls of your room.
To get a handheld remote:


Switch off the electricity. Remote recipients will have DIP switches, or a series of buttons, and three or four wires. Add the battery. As soon as you have the fan attached and in place, slide the ceiling fan remote receiver into the distance above the rear rod. Turn electricity back on and examine.
