Motor Winding Connection Diagram:- In an electric motor, the winding data refers to the specifications and connections of the motor windings. These windings are coils of wire that generate the electromagnetic fields necessary for the motor to function. The connection of these windings varies depending on the motor type and configuration.

Typically, there are three main types of motor windings: single-phase, three-phase, and DC motor windings. Each type has its own specific connection requirements.

Today s Post We Are Cover All Motor Winding Connection And Motor Winding Connection Diagram Like:-

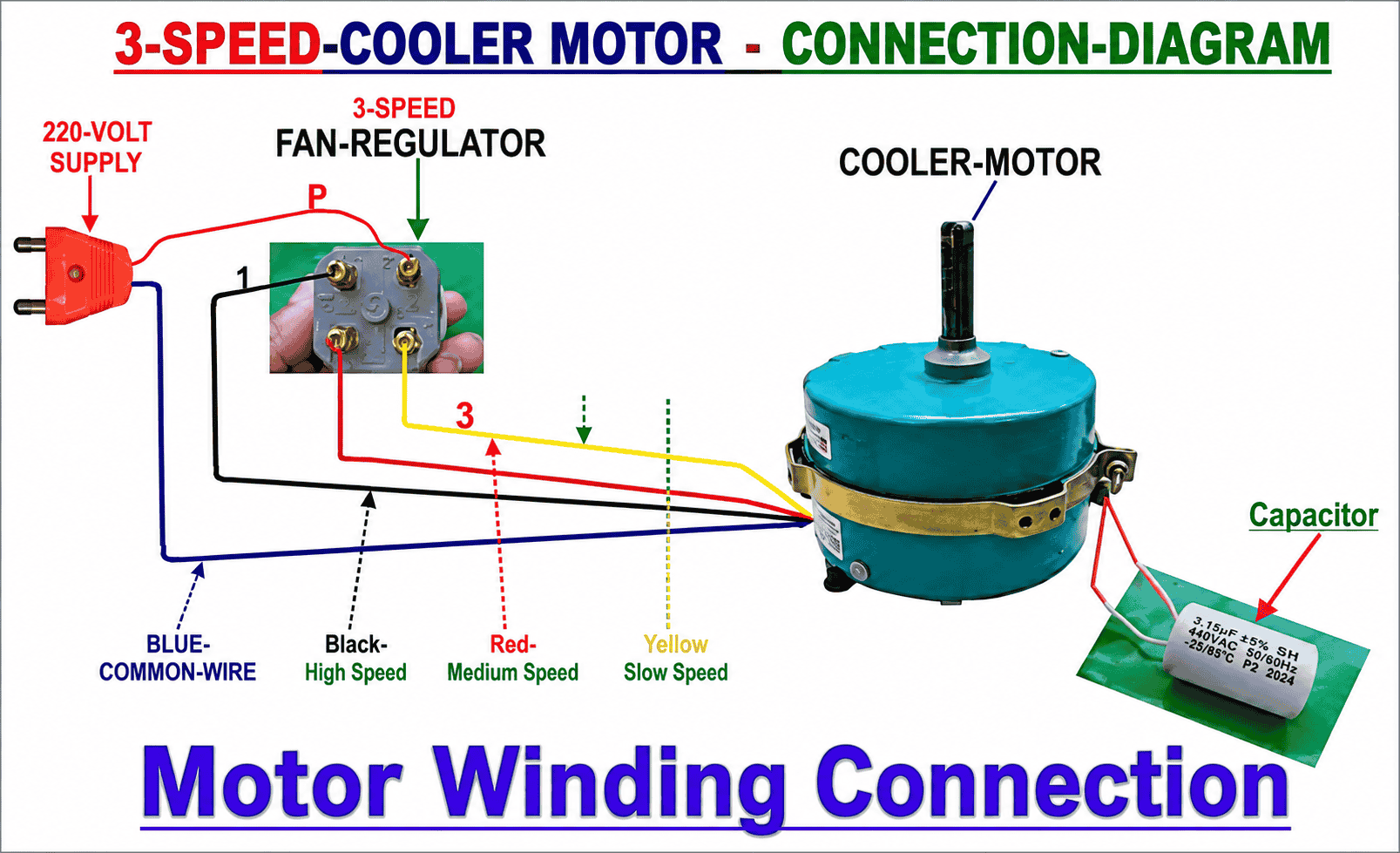

3 Speed Cooler Motor Winding Connection Diagram.

3 Speed Cooler Motor Winding Connection.:- 3-speed cooler motor typically has multiple windings or coils to facilitate different speed settings. The winding connection involves wiring these coils in a configuration that allows for the selection of different speeds.

The common configuration includes multiple taps on each coil, which are then connected to a selector switch. The selector switch allows the user to choose between different combinations of taps, thereby altering the effective number of winding turns and consequently changing the motor speed.

Cooler Motor Winding Connection Diagram:-
Cooler Motor Winding Connection Diagram:-

Generally, there will be a wiring diagram provided by the manufacturer indicating which taps on each coil correspond to different speed settings. It’s crucial to follow this diagram precisely to ensure proper operation and avoid damaging the motor.

If you’re not familiar with electrical work, it’s advisable to seek assistance from a qualified electrician when connecting or modifying the wiring of a 3-speed cooler motor. Safety should always be a top priority when working with electrical components

4 Wire Cooler Motor Connection:-

Single Speed Cooler Motor Connection:- A single-speed cooler motor has just one set of windings or coils. These windings are typically connected directly to the power supply through a switch or control mechanism.

4 Wire Cooler Motor Also called Single Speed Cooler Motor.

Single speed cooler motor winding| 4 wire cooler motor connection diagram
Single speed cooler motor winding| 4 wire cooler motor connection diagram

The Cooler Motor connection involves wiring the motor’s winding to a power source, such as an electrical outlet. This can be done via a switch or directly to the power source depending on the motor’s design.

Cooler Motor Connection with Capacitor Diagram

Cooler Motor Connection with Capacitor:– Connecting a cooler motor with a capacitor involves using the capacitor to create a phase shift in the motor’s winding, which helps start the motor and improves its efficiency. Here’s a description of the connection process:

Identify Motor Leads: Begin by identifying the leads or terminals of the cooler motor. Typically, there will be at least two leads for the main winding and possibly additional leads for other windings or auxiliary functions.

cooler motor capacitor connection
cooler motor capacitor connection

Select Capacitor: Choose an appropriate capacitor for the motor. The capacitance value of the capacitor will depend on the motor’s specifications and requirements. Consult the motor’s documentation or a professional for guidance on selecting the correct capacitor.

Wiring the Capacitor: Connect one terminal of the capacitor to one of the leads of the main winding. Then, connect the other terminal of the capacitor to one of the power supply lines.

Wiring the Motor: Connect the other lead of the main winding directly to the power supply line. If there are additional windings or leads on the motor, follow the manufacturer’s instructions for their connection.

Additional Components: Depending on the motor’s design and requirements, there may be other components involved in the connection, such as switches or thermal protection devices. Ensure these components are wired according to the manufacturer’s instructions.

Cooler Motor Connection with Regulator (Rotary Switch )

Cooler Motor Connection with Regulator Diagram:- Connecting a cooler motor with a regulator, such as a rotary switch, allows for controlling the motor’s speed. Here’s a description of the connection process:

Identify Motor Leads: Begin by identifying the leads or terminals of the cooler motor. Typically, there will be at least two leads for the main winding.

Cooler Motor Connection With Regulator | Multi-Speed Cooler Motor Connection With Rotary Switch.
Cooler Motor Connection

Select Rotary Switch: Choose a rotary switch suitable for controlling the motor’s speed. The switch should have multiple positions corresponding to different speed settings.

Wiring the Cooler Motor Regulator Switch: Wire the rotary switch according to its instructions. Typically, the switch will have terminals labeled for different speed settings. Connect one terminal of the main winding to the common terminal of the switch.

Connect Speed Settings: Connect the other terminals of the main winding to the corresponding terminals on the rotary switch for each speed setting. Follow the manufacturer’s instructions or the diagram provided with the switch to ensure correct connection.

Power Supply Connection: Connect one of the power supply lines to the common terminal of the switch. Connect the other power supply line directly to the remaining terminal of the main winding.

Single-phase motor winding Connection.

In single-phase motors, there is only one phase of power supply.
The winding typically consists of two coils: a main winding and a start winding.
The main winding is connected directly to the power supply.
The start winding is connected in series with a start capacitor to create a phase shift, which provides the necessary torque to start the motor.
These connections create a rotating magnetic field, allowing the motor to start and run.

Three-phase motor winding:

Three-phase motors have three phases of power supply, which create a rotating magnetic field.
The motor winding typically consists of three sets of coils, one for each phase.
The coils are connected in a specific configuration, often referred to as star (Y) or delta (∆) connection.
In star connection, one end of each coil is connected together, forming a common point called the star point. The other ends of the coils are connected to the respective phases of the power supply.
In delta connection, the coils are connected end-to-end in a loop, forming a closed circuit.
The choice between star and delta connection depends on the motor’s operating requirements and the available power supply configuration.

DC motor winding:

DC motors use direct current (DC) to power the motor windings.
The winding configuration can vary depending on the motor type, such as brushed or brushless DC motors.
In brushed DC motors, there are typically two coils: an armature winding and a field winding.
The armature winding is connected to the power supply through brushes and a commutator, which allow for the reversal of current flow and the generation of torque.
The field winding provides the magnetic field necessary for motor operation and is connected to a separate power supply or controlled electronically in brushless DC motors.
Understanding the winding data and proper connection methods is crucial for the safe and efficient operation of electric motors. It’s essential to consult the motor’s datasheet or wiring diagram provided by the manufacturer for accurate connection guidance. If in doubt, seeking assistance from a qualified electrician or technician is recommended.
