The Washing Machine Spin Motor winding it is impossible without Spinner Motor Winding Data, Spin Motor Winding Data In This Spin Motor Winding Wire, Used 30+32 Wire Number, Motor Winding Coil Turn Running Winding 150 Turns, When we start to winding the Washing Machine Spin Motor first we need Motor winding data like Coil, Turns, Pitch, Wire Number and many more information.

Washing Machine Spin Motor Winding

In this article, I will give you all information about All Types of Washing Machine Spin Motor, Dryer Motor, and Spinner Motor. We are also discuss motor winding, best washing machine, motor winding material, motor winding insulation paper, motor winding connection, motor winding connection diagram.

In this article I’m also covered.

  • Washing machine spin motor winding.
  • Dryer motor winding.
  • Spinner motor winding.
  • Spin motor connection diagram.
  • Motor insulation paper size.
  • Full Winding data of all spinner motor.
  • Best washing machine in India.

Spin Motor Winding Data?

This Is Spin Motor Winding Data is well working with Samsung spinner motor, LG spin motor, whirlpools spinner motor, Godrej spinner motor, Videocon spin motor, and all types of washing machine dryer motor.

Spin Motor Winding Data With Connection.
Spin Motor Winding

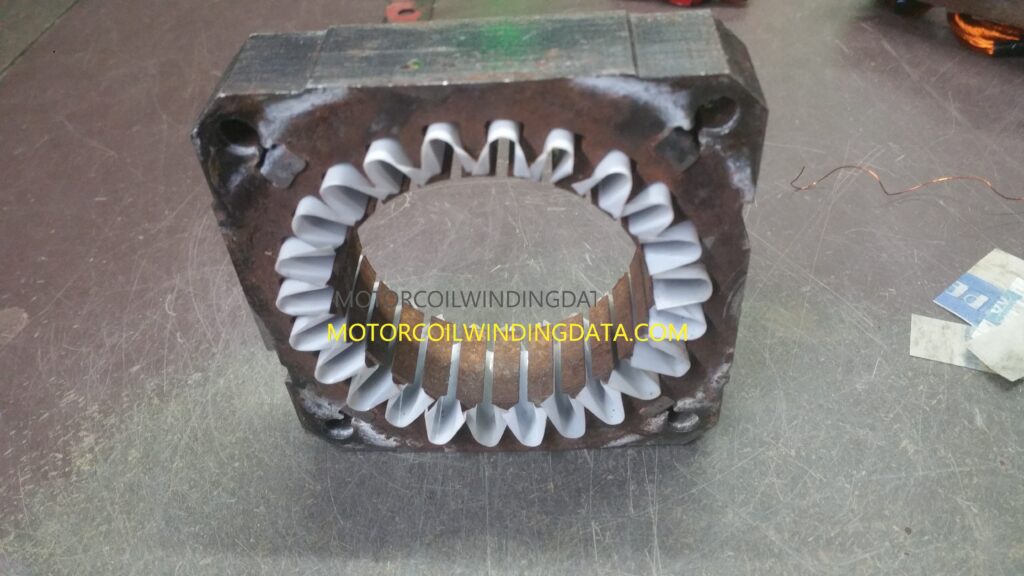

Spin Motor Stator Detail

  1. Core length          =   6soot
  2. Inner Diameter     =   2″5 soot
  3. Outer Diameter    =   4 inch 1 soot
  4. Slot = 24
  5. Watts  =  350
  6. Rpm = 1400
  7. 4pole motor winding.
  8. Capacitor 6 mfd in 220 volts to 240 volts.
  9. 8 Mfd Capacitor Value In The Down Voltage Area.
Spin Motor Winding Data Video.

Spin Motor Running Winding Data Here.

Running Winding Coil Pitch =  1-4.        1-6

Running Winding Pitch    =    1-4 and 1-6

Coil Rounds                    = 1-4 (1 baar gumana)

Coils Round                = 1-6( 2 baar gumana hai)

Pitch = 1-4 1-6

Running Winding Turns =    150-.      300

Swg  (Standard wire gauge)  =  31 Number Copper Wire.

Spin Motor Winding.(Running)

Coil PitchTurnsSwg-Wire NumberCoil Size
1-4150 Turns31 - Number22 Inch
1-6300 Turns31 - Number22 Inch

Spin Motor Starting Winding.

Coil PitchTurnsSwg-Wire NumberCoil Size
1-4150 Turns33 - Number22 Inch
1-6300 Turns33 - Number22 Inch

Spin Motor Winding Data With Connection.

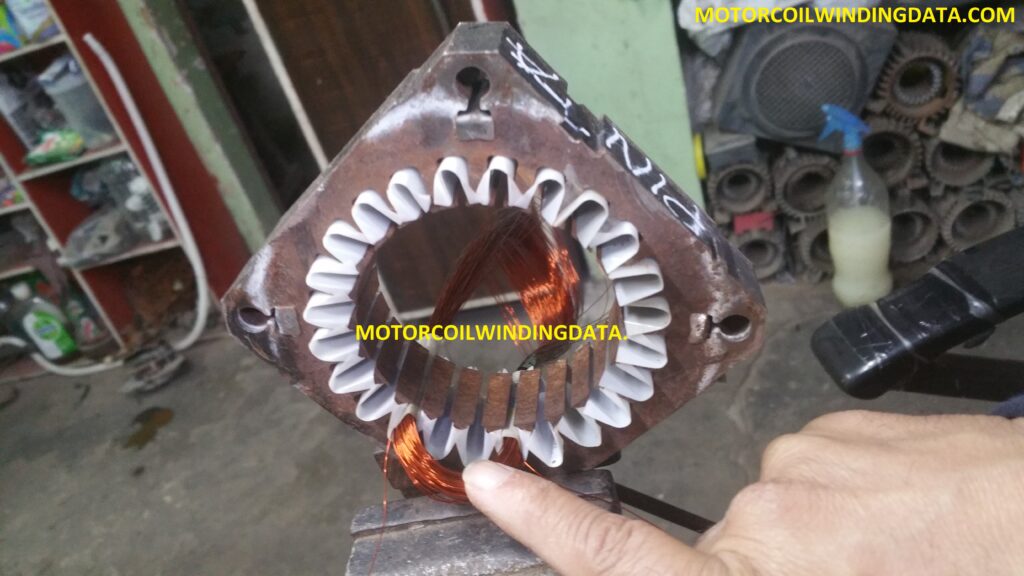

Start Spin Motor Winding with first coil and the Running Winding Coil pitch will be 1-4 and 1-6,as you see in image 2 slots free,The Coil Rounds Will Be 1 In 1-4 and 2 In 1-6.

Spin Motor Starting Winding Data Here.

Starting Winding Coil Pitch =  1-4.        1-6

Coil Rounds                    = 1-4 (1 baar gumana)

Coils Round                = 1-6( 2 baar gumana hai)

Pitch = 1-4 1-6

Starting Winding Turns =    135       270 Turn

Swg Starting Winding (Standard wire gauge)  =  32 Number Copper Wire.

Coil size is 22 inch

(This is single speeds winding motor.)

Spin Motor Winding Data With Connection

Spin Motor Connection Diagram.

spin motor Connection Diagram.
Spin Motor Connection Diagram.

Connection =Normal.

Washing Machine Spare Parts Buy Here.

If you want to Buy Washing Machine Spare Parts you can easily buy them from our Amazon Shop here. The link will be given below.

buy Washing Machine Spare Part from our amazon page
Buy Washing Machine Spare Part By Motorcoilwindingdata.com

Washing Machine Questions & Answers?

Which wire is used in motor winding?

In The Washing Machine Motor normally used Super Enamelled copper wire. Nowadays there are some motors in the washing machine motor in which aluminum wire is inserted, copper winding wire and aluminum wire have different Wire Numbers.

How does a washing machine motor work?

How does a washing machine motor work?
