Cooler Motor

The cooler motor can be of many types such as 24 slots 36 slots and many other types of cooler motors that come in different types of coolers, such as Desert Cooler TALL Total, tower cooler, plastic body cooler, iron cooler Cooler motor is used in many other types of coolers.

Coolers are used mostly in the summer season in different countries, nowadays many company coolers are going, some coolers and remote-controlled coolers are also available in the market.

Cooler Motor Winding.

Cooler Motor Winding is very easy, in this post we have told how you can wind a 24 slot Cooler motor in 3 speed. Nowadays, this motor is used in most coolers. Whenever the summer season starts, we need a cooler and then these Cooler motors are rewinding because these motors are mostly defective during the summer season, Cooler motor winding we mostly rewind at 1440 Rpm. Winding is also done in high-speed motors of some coolers.

24 Slot Cooler Motor Connection Diagram.

In this post, we have explained how you can make a connection to the winding of the 3 speed cooler motor, a diagram is given below that you can very easily make a connection to the cooler motor, as well as some photos. Has been given, and some videos have also been given, which will make it very easy to understand the connection of the Cooler Motor.

cooler motor connection diagram
cooler motor connection diagram



  3 speed cooler motor wiring diagram.



cooler motor connection diagram motorcoilwindingdata.com
motorcoilwindingdata.com





3 Speed Wire Colour Code

In this post, we have told that 4 wires come out in the Cooler motor, the Common wire is Blue. The  Black wire is of High speed. The Red Wire is Medium Speed. And finally, Yellow wire Slow Speed which has the lowest speed. You can also use White wire instead of Yellow wire, which is the same color code in most Coolers.



3 Speed Cooler Motor Connection Diagram:-



cooler motor connection
        3 speed cooler motor wiring diagram-motorcoilwindingdata.com



3  Speed Cooler Motor Connection
3 Speed Cooler Motor Connection

Cooler Motor Connection Diagram
Cooler Motor Connection Diagram motorcoilwindingdata.com



cooler motor capacitor

Apart from this, two Other wires will come out which will be Capacitor wires. Whose color we have been Pink Wire in the diagram, if you want to replace it, then you can use any other color, whatever you like.

Which capacitor is used in cooler?

COOLER MOTOR-CAPACITOR You can apply 4MFD to 6MFD in a Normal VOLTAGE AREA AND house. Its value depends on the voltage of your home, your area, where the voltage will be low, the CAPACITOR will be of higher value, where the voltage will be higher, the capacitor will be of less value, like where the voltage will be from 220 to 250. You can install a capacitor of 4MFD, and where the voltage will be around 170-180, a capacitor of 6MFD will have to be installed.

Cooler Motor Connection Diagram

YOU CAN WATCH MOTOR WINDING VIDEO AND CONNECTION.

Cooler Motor Connection Diagram

3 Wire Cooler Motor Connection
3 Wire Cooler Motor Connection-motorcoilwindingdata.com
3 Speed Cooler Motor Connection

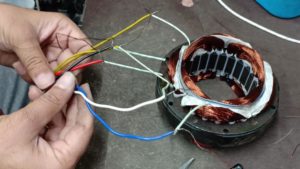

In this picture, you can see the 4 wires like blue wire, black wire, red wire. and white wire.this is the Common Colour Code of 3S Cooler Motor Connection

3 Speed anticlockwise cooler motor winding connection digram-motorcoilwindingdata.com
motorcoilwindingdata.com three-speed cooler motor connection diagram

Colour Code Of 3 Three Speed Motor Winding

3 speed cooler motor connection diagram

In This image you can clearly see the blue wire,white wire,red wire,black wire,2.yellow wires.here i can clear the yellow wires is the Capacitor Wires.

3 Speed Cooler Motor Connection Video. Watch-Here

Some Other Usefull Video For Your Check It.

  1. Cooler motor Rewinding coil turn data
  2. High-speed ceiling fan motor rewinding in Hindi
  3. Aluminum wire cooler motor 24 slot
  4. Exhaust fan motor winding 18 inches 24 slots
  5. multi-speed cooler motor connection
  6. 18″exhaust fan motor winding data
  7. How to change a capacitor of  Tulu pump
  8. High Speed Wall Fan Motor Winding Data
  9. Washing Machine #Timer Connection
  10. Ceiling fan rewinding 12+12

FAQ.

How do you wire a cooler motor?

In this post, we have told that 4 wires come out in the Cooler motor, the Common wire is Blue. The  Black wire is of High speed. The Red Wire is Medium Speed. And finally, Yellow wire Slow Speed which has the lowest speed. You can also use White wire instead of Yellow wire, which is the same color code in most Coolers.

YOU CAN WATCH HERE THE FULL DETAIL WITH DIAGRAM TO WIRE A COOLER MOTOR.

3 Speed Cooler Motor Connection | 3 speed cooler motor wiring diagram | Cooler Motor Connection Diagram
How do you connect a capacitor to a cooler?

How do you connect a capacitor to a cooler?

THE Capacitor is mostly connected with two wires of cooler motor.The one wire is coming from running winding and the starting wire is coming from starting winding.

you can check with the multimeter and which wires show high resistance these wires connected with capacitor.you can also check with series lamp.

here in this diagram you can easily check out how to connect a capacitor to cooler motor.

Cooler Motor Connection With Regulator | Multi-Speed Cooler Motor Connection With Rotary Switch.

Can you connect black and white wires together?

If you are asking to joint the black and white wires of cooler motor speed which is coming from cooler motor winding then my answer is no.Bcz these wires provide the resistance to coils and make magnet to help the running of motor in speed.

if you are connect White And Black wires then the coil will be shot and motor speed is getting slow.

Next if you are asking to joint black and white wires comming from input supply then my answer is also no.

What is the best capacitor value of air cooler motors?

COOLER MOTOR-CAPACITOR You can apply 4MFD to 6MFD in a Normal VOLTAGE AREA AND house. Its value depends on the voltage of your home, your area, where the voltage will be low, the CAPACITOR will be of higher value, where the voltage will be higher, the capacitor will be of less value, like where the voltage will be from 220 to 250. You can install a capacitor of 4MFD, and where the voltage will be around 170-180, a capacitor of 6MFD will have to be installed.

you can also check more detail on our webstire motorcoilwindingdata.com
