24 slot 1440 Rpm Cooler Motor Winding in Hindi, cooler winding,24slot cooler motor winding, cooler motor repair,24 slot cooler winding,24 slots cooler, rewinding 24 slots cooler motor winding data?
Topics Cover In This Post

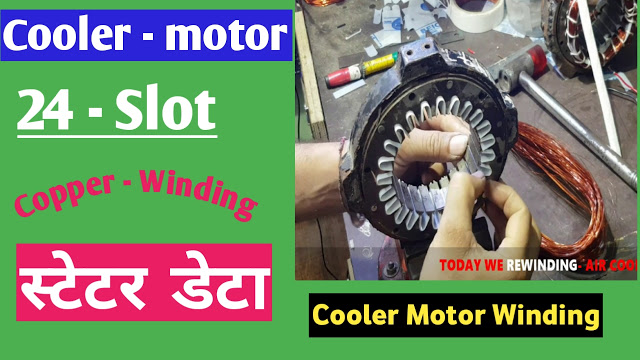

24 slot cooler motor Rewinding data
- Core length 1 inch
- inner diameter 3 inch
- outer diameter 5 inch
- Slot. 24
- watts 370
- Rpm 1440
- Capacitor = 4 MFD
- 4 pole motor winding.
- capacitor 4 mfd in 220 volt to 240 volt.
- 5 mfd in down voltage area.
- VOLTS =220
- RPM = 1440
- =============================================
2 SPEED WINDING DATA IS HERE
- This is speed coil detail
- Pitch 1-4 1-6
- Turns 70 130
- Swg 32 30
(PLEASE NOTE THIS IS 2 SPEED COOLER MOTOR WINDING)
=======================================
- Running pitch 1-4 and 1-6
- Running Turns 165 330
- coil. 1-4 (1 baar gumana)
- Coil. 1-6( 2 baar gumana hai)
- Swg Wire No 30
- Winding Wire Type = Copper Wire
Starting Winding Data.
- Starting pitch 1-4 and. 1-6
- swg 32
- coil. 1-4. 1-6
- Coil Turn 160. 320
- SWG Wire No =32
- Total coils 8 pc
- 4 coils in running
- and
- 4coils in. starting
- coil size is 25.5 inch
