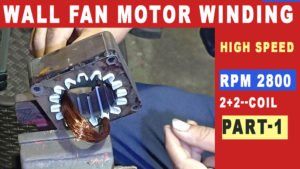

High-Speed Wall Fan Motor Winding Data | Wall fan 2800 rpm motor winding.

Spread the love

in this post, we have described how to Rewind High-Speed Wall Fan motor winding data a Wall fan motor at high speed like 2800 rpm 2 poles.

My dear friends, we have explained in this post how to rewind the motor of the wall fan. What will be the pitch of the wall fan’s motor? The number of turns you will put while rewinding the wall fan wall. You will put a total of 4 coils in the wall fan stator. You will put 2 coils in the running winding and in the wall of the wall fan you will put 2 coils in the starting. Its pitch will be 1 – 6 and 1 – 8. The high-speed wall will have 2800 rpm and this motor will be WIND in 2 poles. For more information, do not forget to visit our ELECTRICALS TRENDZ YouTube channel.

High Speed Wall Fan Motor Winding Data wall fan 2800 rpm motor winding.

मेरे प्यारे दोस्तों हमने इस पोस्ट में बताया गया है के वाल फैन की मोटर को कैसे रिवाइंड किया जाता है। वाल फैन की मोटर की कितनी पिच होगी। वाल फैन की मोटर को रिवाइंड करते समय आप कितनी टर्न डालेंगे। वाल फैन के स्टेटर में आप टोटल  4 कॉइल्स डालेंगे।  2 कॉइल्स आप रनिंग वाइंडिंग में डालेंगे और वाल फैन की मोटर में 2  कॉइल्स आप स्टार्टिंग में डालेंगे। इसकी पिच 1 – 6 और 1 – 8 होगी। हाई स्पीड वाल के 2800 आरपीएम होंगे और यह मोटर 2 पोल में WIND होगी। और अधिक जानकारी के लिए आप हमरे यूट्यूब चैनल को विजिट करना मत भूले।
My dear friends, we have explained in this post how to rewind the motor of the wall fan. What will be the pitch of the wall fan's motor? The number of turns you will put while rewinding the wall fan wall. You will put the total of 4 coils in the wall fan stator. You will put 2 coils in the running winding and in the wall of the wall fan you will put 2 coils in the starting. Its pitch will be 1 - 6 and 1 - 8. The high-speed wall will have 2800 rpm and this motor will be WIND in 2 poles. For more information, do not forget to visit our ELECTRICALS TRENDZ YouTube channel.
My dear friends, we have explained in this post how to rewind the motor of the wall fan. What will be the pitch of the wall fan’s motor? The number of turns you will put while rewinding the wall fan wall. You will put the total of 4 coils in the wall fan stator. You will put 2 coils in the running winding and in the wall of the wall fan you will put 2 coils in the starting. Its pitch will be 1 – 6 and 1 – 8. The high-speed wall will have 2800 rpm and this motor will be WIND in 2 poles. For more information, do not forget to visit our ELECTRICALS TRENDZ YouTube channel.

High Speed 2800 Rpm Wall Fan Motor Full Winding Data.

Core length             =   1 inch 2 soot

Inner Diameter     =   1 inch   6 soot

Outer Diameter    =   3 inch

Slot.   16

Watts

Rpm 1440

4 pole motor winding.

Capacitor 2.50 mfd in 220 volt to 240 volt.

3.15 mfd in down voltage area.

    HIGH-SPEED WALL FAN MOTOR RUNNING WINDING VIDEO  HERE.



16 slot 2800 RPM- HIGH-SPEED WALL FAN MOTOR RUNNING WINDING HERE

Running pitch        1-6 and 1-8

Coil.                      1-4 (1 baar gumana)

Coil.                    1-6( 1 baar gumana hai)

Coil.  1-6.        1-8

Turn   410-.      410

Swg  (Standard wire gauge)  = 34 Number Copper

Starting pitch   1-6 and. 1-8

Coil.  1-6.      1-8

Turn 390.      390

Swg  =   34 Number =Copper

high speed wall fan connection diagram.

high speed wall fan connection by motorcoilwindingdata.com
high speed wall fan connection by motorcoilwindingdata.com

16 SLOT WALL FAN MOTOR STARTING WINDING PART HERE.

high speed wall fan motor winding data by motorcoilwindingdata.com
high speed wall fan motor winding data by motorcoilwindingdata.com

16 Slot Wall Fan Motor Coil Winding Details Here

Total coils 4 pc

2 coils in running

      and

2 coils in. starting

Coil size is update soon

(This is single speeds winding motor.)

Connection =Normal

=====================================================
