Washing Machine Winding:- The Washing Machine Winding With Washing Machine Motor Price full detail of Washing Machine Winding is very easy if you understand its Dryer Motor Winding data. we are also covered in this article Washing Machine Motor Winding Data.
In This Article, I Will Show You the Full Washing Machine Motor Winding We Also Make Washing Machine Motor Winding Diagram With Full Detail of the Washing Machine Motor Connection
In This Article, You Can See?
- Washing Machine Winding?
- Washing Machine Winding Connection?
- Semi Automatic Spin Motor Winding.
- Washing Machine Motor Winding Diagram.
- Washing Machine Connection?
- Washing Machine Motor Price.
- Wash Motor Price Of Washing Machine.
- Dryer Motor Winding.
- Spin Motor Winding Data.
- Spin Motor Winding.
- Semi Automatic Spin Motor Fitting.
- Spin Motor Wiring.
- Washing machine Motor Rewinding.
- All Washing Machine MotorWinding.
- Who Invented the Washing Machine?
Topics Cover In This Post
- 1 Who Invented the Washing Machine?
- 2 Washing Machine Winding.
- 3 Buy 1/10 Coil Winding Machine
- 4 What Is The Washing Machine Motor Price?
- 5 Best Washing Machine Motors In India.
- 6 Samsung, Godrej, Onida, Maharaja Washing Machine Motor Price.
- 7 Washing Machine Wash Motor Price?
- 8 How To Clean Washing Machine?
- 9 Washing Machine Dryer Motor Winding.
- 10 Washing Machine Motor Wiring Diagram?
- 11 Washing Machine Connection Diagram.
- 12 Washing Machine Wash Motor Rewinding Data.
- 13 Starting Winding Data Here:-
- 14 Conclusion.
- 15 Faq.
- 16 Washing Machine Winding Top Questions And Answers?
Who Invented the Washing Machine?
Jacob Christian SchäfferWe owe the invention of the washing machine to Jacob Christian Schäffer (1767). 30 decades later, an American, Nathaniel Briggs, obtained the first patent for a washing machine. It involved pouring hot water into your tank, then turning a lever to wash the clothing, and then wringing them between two rollers

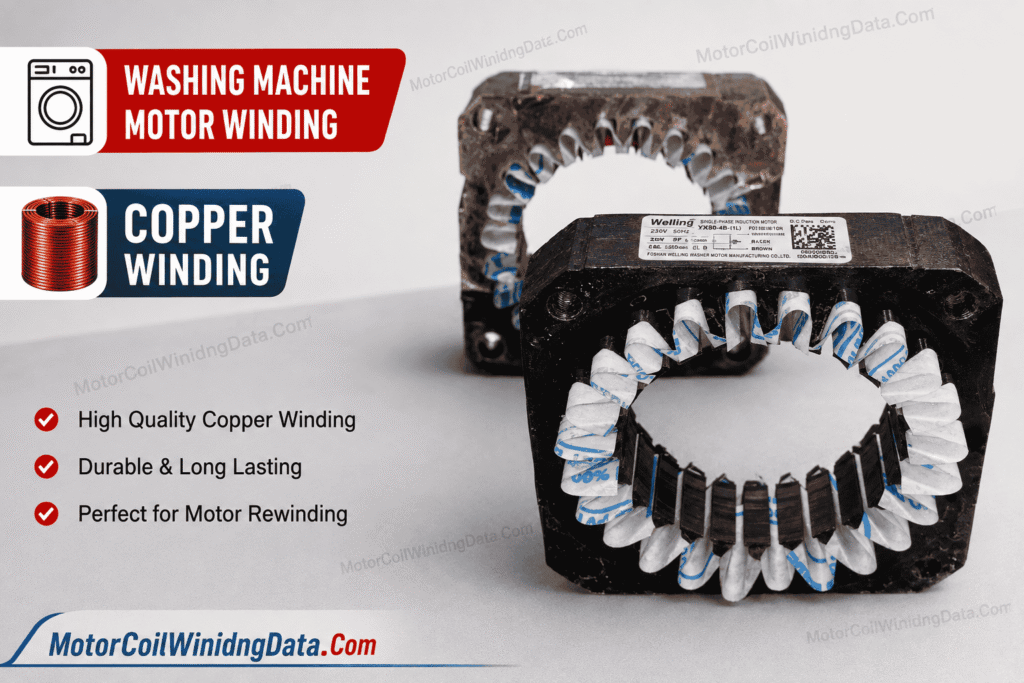

Washing Machine Winding.
When we start Washing Machine Winding What material will we need to do the washing machine winding?
- First, we need Insulation paper
- Washing Machine Winding Wire.
- Sleeves 1 number,3 Number.
- Washing Machine Winding Data.
- Motor Winding Varnish.
Buy 1/10 Coil Winding Machine

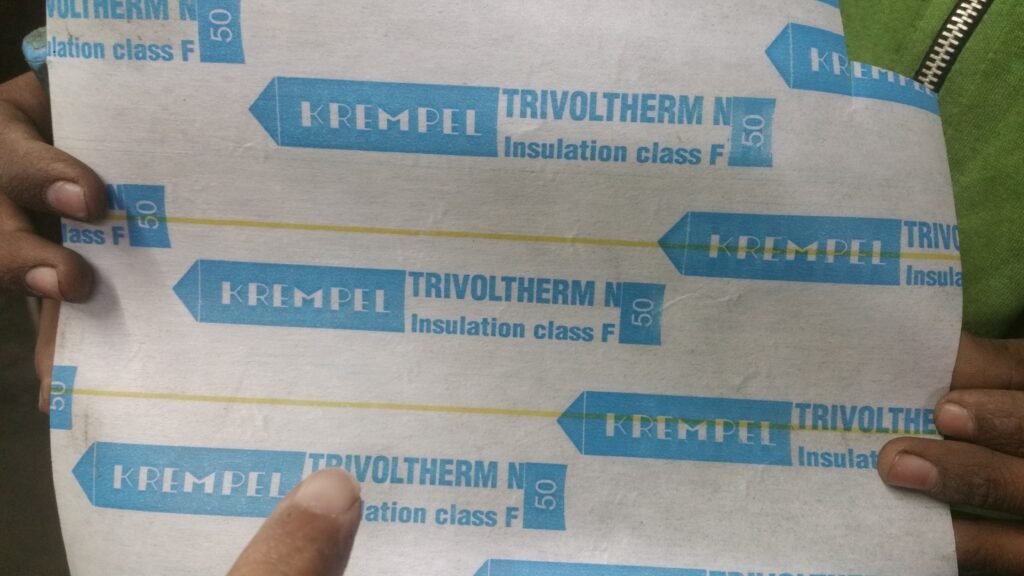

We need 7 Number Insulation Paper To Washing Machine Winding.You Can use 7 Number Krempel Paper,Beiko Sheet.but dont use green sheet because in washing machine use water so stronglly prohibted to use green paper sheet.
What Is The Washing Machine Motor Price?
Washing machine motor prices may vary. I mean to say that different models of companies making different washing machines have different Washing Machine Motor prices.
The automatic Washing Machine Is Fitted With Two Motors: One Motor Is For the Wash Motor, and the second motor is for the Washing Machine Dryer Motor. The Washing Machine Dreyer Motor Price is the same as Spin Motor because the name is different but the motor and product are the same.
In This article, we Cover all famous brands of washing machine motor prices. (All data is collected from Amazon and prices and details may change from time to time, so you can check the right price and details on the Company website and Amazon Website.)
- Lg Washing Machine Motor Price.
- Samsung Washing Machine Motor Price.
- Whirlpool Washing Machine Motor Price.
- Ifb Washing Machine Motor Price.
- Videocon Semi Automatic Washing Machine Motor Price.
- Godrej Washing Machine Motor Price.
Best Washing Machine Motors In India.
- WATERPROOF DESIGN: Specially engineered waterproof and rust-proof construction ideal for semi-automatic and twin tub washing machines, ensuring reliable performance in wet conditions
- POWERFUL PERFORMANCE: 70W motor delivers 900 RPM high-speed operation with 230V 50Hz power supply for efficient water extraction and faster drying cycles
- DURABLE BUILD: Premium metal construction with rust-proof components ensures long-lasting durability and reliable operation for heavy-duty spin cycles
- COMPATIBILITY: Fits most popular washing machine brands with 8.12 cm dimensions, making it an ideal replacement motor for various semi-automatic models
- EASY INSTALLATION: Complete kit includes pre-attached wiring, power cable with connectors, and mounting brackets for quick and straightforward replacement
- PREMIUM QUALITY: DVM GL Spin motor featuring 100% copper construction for superior performance and durability in washing machines
- COMPATIBILITY: Only Compatible for LG semi automatic washing machine.
- DESIGN FEATURES: Built-in overload protection system to prevent motor damage during excessive loads or voltage fluctuations
- MOUNTING SYSTEM: Sturdy metal mounting bracket with pre-drilled holes for secure and straightforward installation
- ELECTRICAL SPECS: Professional-grade spin motor with multiple connection points for reliable power transmission and consistent operation
- J K b K Waterproof Spin Motor Compatible with CROMA WASHING MACHINE,
- 220V – 50 Hz – 1320 rpm – 70W – 5uF,
- 1320 r/min —- Important : Its SPIN MOTOR, ======== Its NOT Wash Motor,
- Important : PLEASE MATCH THE PICTURE OF YOUR OLD MOTOR WITH THE PICTURE UPLOADED BY US and Brand Name before placing your order,
- In the Pack : 1 x Spin Motor 100 % New & Imported
- UNIVERSAL COMPATIBILITY: Designed to fit most standard washing machine models with a direct-drive mounting system and standard electrical connections
- PERFORMANCE: Powerful spin motor delivers reliable performance for both wash and spin cycles with efficient water extraction
- DURABILITY: Heavy-duty construction with sealed bearings and robust metal housing ensures long-lasting operation and resistance to moisture
- INSTALLATION: Comes with mounting brackets and wiring harness for straightforward replacement of existing motors
- SPECIFICATIONS: Single-phase motor with multiple speed settings, suitable for various wash cycle requirements
- MOTOR TYPE: Heavy-duty spin motor specifically designed for washing machine applications with durable metal construction
- DESIGN: Compact silver and black motor featuring ventilation slots for efficient cooling during operation
- CONSTRUCTION: Robust metal housing with integrated mounting bracket for secure installation
- COMPATIBILITY: Standard shaft design suitable for most domestic washing machine models
- PERFORMANCE: Engineered for reliable spin cycle operation with balanced rotational movement
- ✅ Compatible with Samsung Semi-Automatic Washing Machines
- ✅ High-Quality Motor for Efficient Spin Performance
- ✅ Reliable Replacement for Faulty/Damaged Spin Motors
- ✅ Durable Build for Long-Lasting Operation
- ✅ Easy Installation – Plug and Use
- It is 70 watts motor
- Please match the image with your old motor.
- Long-lasting motor with Superior built quality with high performance.
- Spin motor in Copper Winding Compatible for Semi Automatic Washing machine.
- WATERPROOF DESIGN: Premium quality waterproof motor specially engineered for semi-automatic and twin tub washing machines, ensuring safe and reliable operation
- COMPATIBILITY: Spin motor designed to work seamlessly with For Samsung and other major washing machine brands in the market
- DURABILITY: Robust stainless steel construction with high-grade components ensures long-lasting performance and reliability
- INSTALLATION: Comes with colour-coded wiring and mounting brackets for straightforward installation and maintenance
- SINGLE BOX PACKAGING: Professionally packed in a single box with complete mounting hardware and installation guide included
- WATERPROOF DESIGN: Premium quality waterproof spin motor specifically engineered for washing machines, ensuring reliable performance even in wet conditions
- COMPATIBILITY: Versatile motor designed to work seamlessly with For WP For GD & HR models, offering wide-ranging application flexibility
- POWER SPECIFICATIONS: Operates on 240V AC power supply at 50Hz frequency, delivering 70W of consistent motor power with 0.4A current draw
- DURABILITY: Robust construction with high-grade components ensures long-lasting performance in demanding washing machine environments
- MOUNTING: Features secure mounting brackets and standardised installation points for straightforward replacement and maintenance
- Compatible with Godrej Double Door Refrigerator
- Colour- White
- Operates on DC 12V
Samsung, Godrej, Onida, Maharaja Washing Machine Motor Price.
How much does a washing machine motor cost?
Here we are Describing some Washing Machine Spin and wash Motor costs. The price of a Washing Machine Motor Starts from 1000 INR to 2000 INR.
It is worth noting here that all these Washing Machine Motors were Manufactured by India’s top-standard companies, but the companies that manufacture washing machines use different Motors for their products, and their prices may also be different from those of these companies.
Washing Machine Wash Motor Price?
LG Washing Machine Motor Price.
LG is the Largest manufacturing company in the world, and its products are 100% better.
LG front-load washing machines come with LG ThinQ & Wi-Fi connectivity, allowing you to do your laundry in a smarter way. Find out more below.
With LG’s premium home appliances. Choose from microwave ovens, Side By side-by-side refrigerators, Dishwashers, top and front load washing machines including the revolutionary Twin Wash machines, air conditioners, air dehumidifiers, LED lighting, and a host of other efficient functional devices.
With LG’s efficient Water Purifiers and Vacuum Cleaners, you will always remain fit and healthy, free from all harmful bacteria. Keep track of every move and let LG’s professional equipment leave a lasting impression behind your back.
How To Clean Washing Machine?
To Clean the Washing Machine, first of all, you have to remove the wash side of the Washing Machine which means the impeller on the washing side has a screw on the impeller.
You have to loosen that screw with the help of the screwdriver and after that, The impeller has to be taken out and mixed with a Surf of hot water to clean the dirt lying there.
After that, you have to open the back cover of the washing machine remove the drain rubber there, and clean the drain pipe thoroughly. To Clean the Washing Machine we have made two videos for this, you can clean the washing machine very easily by watching both those videos.
Washing Machine Dryer Motor Winding.
Here, we have shown how to rewind a Washing Machine Dryer Motor Winding data spin motor. What will its pitch be, what will be the number of the Winding Wires, and how many slots will it have? And what is the washing machine motor winding diagram?
Samsung Washing Machine Winding Data.
Start with the First Coil and Leave 2 slots Empty. As you can see in the image, the pitch will be 1-4 and 1-6.
Washing Machine Motor Full Winding Data
- Core length = 7 Soot.
- Inner Diameter = 2 Inch 5 Soot.
- Outer Diameter = 4 Inch 2 Soot.
- Winding Wire = Copper Wire.
- Slot. 24
- POWER = 6.2 KG
- Wash Motor Wattage = 400 Wash
- Spin Motor Wattage = 160.
- Rpm 1440 4-pole motor winding.
- Capacitor 6 mfd in 220 volt to 240 volt.
- 6 mfd in the down voltage area.
Dryer Running Winding Data Watch Here.
- Running Coil pitch 1-4 and 1-6
- Coil. Round 1-4 (1 Round)
- Coil. Round 1-6( 2 Rounds)
- Spin Motor Wattage = 160.
- Starting pitches 1-4 and. 1-6
- Runnin Winding Turns. 140 – 280
- रनिंग कॉइल पिच 1-4 और 1-6
- कुंडल।दौर 1-4 (1 दौर)
- कुंडल।राउंड 1-6 (2 राउंड)
- स्पिन मोटर वाटेज = 160।
- पिचों को 1-4 और शुरू करना। 1-6
- रनिन वाइंडिंग टर्न। 140 – 280
Swg (Standard wire gauge) = 30 Number Copper Wire.
| Coil Pitch | Turns | Swg-Wire Number | Coil Size |
|---|---|---|---|
| 1-4 | 135 Turns | 32 - Number | 24 Inch |
| 1-6 | 270 Turns | 32 - Number | 24 Inch |
Secondary Motor Winding Data:-
- Starting pitches 1-4 and 1-6
- Coil. Round 1-4 (1 Round)
- Coil. Round 1-6( 2 Rounds)
- Coil. 1-4. 1-6
- Turn 135-. 270.
Coil size is 24. inch
Swg (Standard wire gauge) = 32 Number Copper Wire.
Total coils 8pc 4 coils in running and 4 coils in. starting
| Coil Pitch | Turns | Swg-Wire Number | Coil Size |
|---|---|---|---|
| 1-4 | 135 Turns | 32 - Number | 24 Inch |
| 1-6 | 270 Turns | 32 - Number | 24 Inch |
Washing Machine Aluminum Winding Data
Washing Machine Motor Wiring Diagram?
After winding the Washing Machine Motor, the most important thing is to connect the motor of the machine.
If you do not make the Washing Machine Connection Diagrams of the washing machine motor properly, then the motor made by you will also not run properly, so make your Motor Connection Diagram the right way.
Three of the wires will come from inside the washing machine’s motor, one of these wires will be the common wire which will be connected to the running winding and the motor’s starting mining, and the second wire after that will be the running winding wire of the washing machine motor which is the bottom coil. And the third remaining wire will be the starting winding wire of the motor winding connected directly to the capacitor.
Washing Machine Connection Diagram.
Washing Machine Wash Motor Rewinding Data.
Running Winding Data.
-
Core length = 1 inch 5 soot
-
Inner Diameter = 2 inch 5 soot
-
Outer Diameter = 4 inch 3 soot
-
Slot. 24
-
Watts 370
-
Rpm 1440
-
4 pole motor winding.
-
Capacitor 11 Mfd in 220 volts to 240 volts.
-
12 Mfd in the down voltage area.
- Pitch 1-4 and 1-6
- Coil Pitch Round. 1-4 ( 1 baar gumana)
- Coil Pitch Round . 1-6( 2 baar gumana hai)
- Turn 120. 240
Swg (Standard wire gauge) = 29 (तार नंबर)
| Coil Pitch | Turns | Swg-Wire Number | Coil Size |
|---|---|---|---|
| 1-4 | 110 Turns | 29 - Number | 27 Inch |
| 1-6 | 220 Turns | 29 - Number | 27 Inch |
Starting Winding Data Here:-
- Pitch 1-4 and 1-6
- Coil Pitch Round. 1-4 ( 1 baar gumana)
- Coil Pitch Round . 1-6( 2 baar gumana hai)
- Coil. 1-4. 1-6
- Turn 115. 230
Swg (Standard wire gauge) = 30 (तार नंबर)
| Coil Pitch | Turns | Swg-Wire Number | Coil Size |
|---|---|---|---|
| 1-4 | 110 Turns | 29 - Number | 27 Inch |
| 1-6 | 220 Turns | 29 - Number | 27 Inch |
Conclusion.
I hope that with the help of this article you will find it easier to get the washing machine winding and you will have got a lot of information about the washing machine winding. You will be taken to our Amazon shop and you can buy it very easily from there and you can make the washing machine connection very easily with the help of the given washing machine connection diagram, if you are having any problem then you can comment in the comment box below. Write, we will reply to you very quickly and if you like this article or help to make a motor in this article, then please write in the comment box and like and share this article.
