Ceiling Fan Winding Detail.

The winding of the ceiling fan is very easy And Also Easy To Ceiling Fan Winding Data Sheet 14 slot Ceiling fan has different winding, 12 slots Ceiling fan has separate winding, and 16 slot Ceiling fan has different winding. Here You Can Find Motor Winding Data Calculation, In which the motor stator is different, there is also a lot of difference in stamping. The 16 slot Ceiling fan is a slow speed ceiling fan, and the 14 slot ceiling fan is a medium speed ceiling fan, and the 12 slot Ceiling fan is a high-speed Ceiling fan.

All Ceiling Fan Winding Data.

Today we will learn in this post how we can Rewind 14 Slot Ceiling fans, 12, and 16 slot ceiling fans. And together, we will know which is better for us, and which of these ceiling fans is long life, and which Ceiling fan will eat electricity, and which ceiling fan can be easily repaired, which ceiling fan can be fixed. It is challenging to repair this ceiling fan.

14 Slot Ceiling Fan Winding Data Sheet.

First of all, we talk about 14 SLOT Ceiling fans, 14 Slot ceiling fans have been very famous for some time. It is also much more economical, it is also easy to repair, and it did not give any problem in the running. Used to Running, But after some time, 12 Slot Ceiling fans have come in their place. In This Time Mostly Famous Ceiling Fans Brandz Used the 12 Slot motor stators are used in the ceiling fan.

12 Slot Ceiling Fan Winding Data Sheet.

The 12 slot ceiling fan is made more because it is a high-speed ceiling fan. It is effortless to Mind 14 Motor ceiling fan is also less motor winding wire. There is a slight difference in the wire from the ceiling fan of 16 slots because the number of wires in the fan of 16 eaters remains around it while the 14 fan is always thinner than the ceiling fan. And it also takes very less time to wind up the fan of 12 slots

12+12 Ceiling Fan Winding Data

12+12 Ceiling Fan Winding Data video

Ceiling Fan Winding Turn Calculation Pdf.


Note: The mix of the area and the span in the formula takes into account the burden of the wire.

Calculate the inductance associated with the twisting utilizing the formula L (u0 * A * N^2)/l where u0 is the permeability of free space at 12.56 x 10^-7. When N is 100 turns, l is 6 meters and A is 7.069 square meters.

Ceiling Fan Winding Data Calculation Formula.


Find the amount of wire turns and also the length of the wire. Here is how many times the cable wraps around the iron center. Refer to the manufacturer’s specifications of this winding for those values. Call the amount of turns N and the length l.

A = 3.1415 * (1.5)(1.5) = 7.068 square meters.

Ceiling Fan Winding.

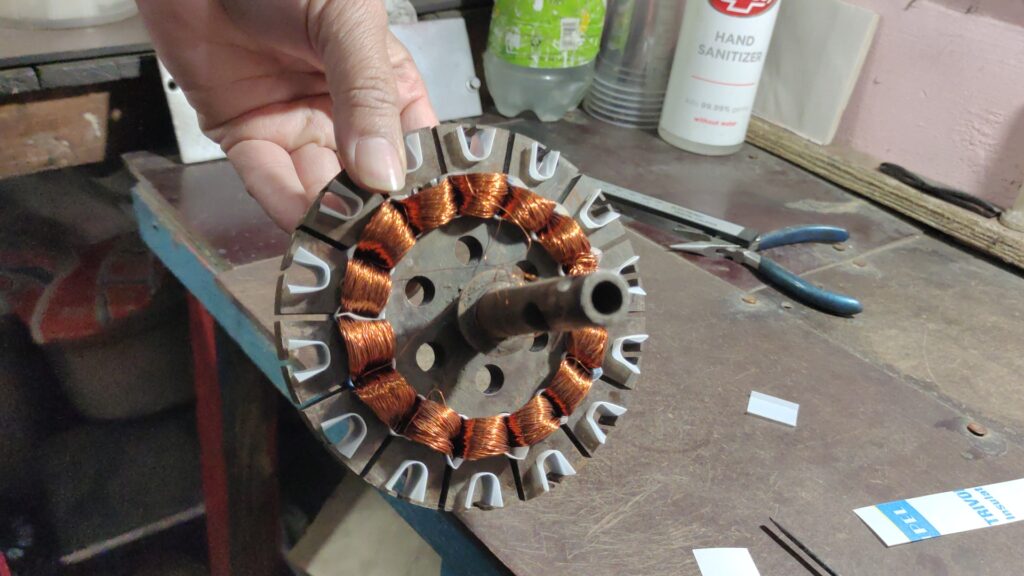

First of all, let’s talk about how the 14 Slot Ceiling fan will be rewinded, and what is The Ceiling fan winding data, you will put in it. Only 14 COILS will be put at the bottom of 14 slots fan and 14 COILS above. The bottom winding that is inserted first in the Ceiling fan is always called the starting winding, and the top winding is called the running winding.

In 14 SLOTS fans we will use 35 number winding wire in the bottom winding, and with 35 number winding wire we will put 350 turners in it, this will be our starting winding. In the fan with 14 SLOT, we will use 34 number winding wire in the above winding, and we will put 300 TURNS in it from 34 number wire. That will be our running winding.

Fan Winding Video.



Ceiling Fan Winding Machine.

We Can not Rewind ceiling fan without a Ceiling fan winding machine All types of a ceiling fan is going to wind up from the machine, as in the ceiling fan winding machine, you do not have to use this data while rewinding the motor by hand. This winding data is only and only used in the Ceiling fan winding.

Where Can I Buy Ceiling Fan Winding Machine?

And if you do not have a Ceiling fan winding machine, if you want to purchase a new ceiling fan winding machine then you can go to our Amazon page, and from there you can buy the Ceiling fan winding machine very easily and very soon the Ceiling fan winding machine Home will be delivered to your home by Amazon. The link to our Amazon shop page Address is given below; you can see the price of the Ceiling Fan Winding Machine and its models by clicking there.

Buy Ceiling Fan Winding Machine From Our Amazon Shop Page.

buy ceiling fan from our amazon page

 Best Ceiling Fan In India Buy Now.

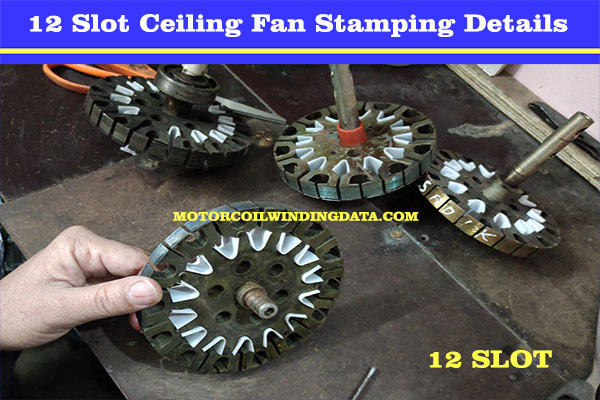

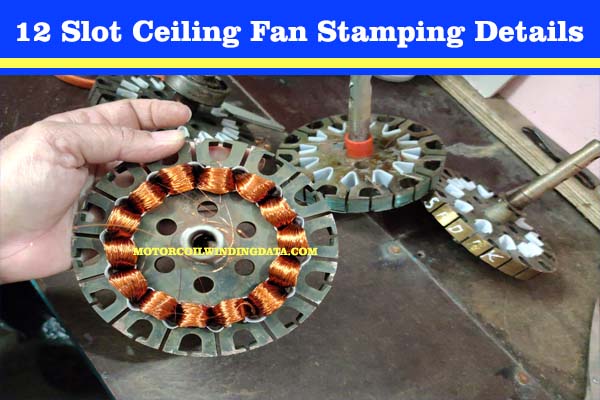

12 slot ceiling fan winding.

Now we will talk about 12 SLOT Ceiling fan stator as we have said earlier that it is a high-speed ceiling fan with RPM s around 400. In the 12 Ceiling ceiling fan,

We will insert 380 TURNS below which will be added with 36 number winding wire. In its running winding, we will put 350 TURNS which will be entered from the 36 number winding wire itself, this 12 SLOT Ceiling fan also we will be Ceiling fan winding Will rewind from the Winding machine itself.

 Below we have told you in Detail that the complete winding data of rewinding 12 SLOTS ceiling fans have been described in detail. Also along with a link to the video of our YOUTUBE channel, you can very quickly rewind these wings by looking at it.

12 slot ceiling fan winding data



16 Slot Ceiling Fan Winding Data.

Now let’s talk about the 16 fan ceiling fans, This Fan was first created by the Orient Electric Company 16 food fans are still known as Orient Wings, after Orient Fan and some companies also have 16 eating ceiling fans. The fans were made by some companies such as USHA Fans ARISTOCRAT, T-SERIES FAN. Still, even today when the name of the 16 Slots Ceiling Fan comes first, The Orient Ceiling Fan is the first name,

Orient Ceiling Fan 16 Slot Winding.

Orient Ceiling Fan 16 Slot In addition to Also make fans with 18 SLOTS named ORIENT PSPO. It was a very successful wing model that became very popular. And these fans used to last very long.


Apart from the Orient Ceiling Fan, if there is any other company that makes 18 fans and 20 eat ceiling fans, it is CROMPTON GREAVES FANS. This company is number one in India in making electrical GOODS;

There are many products related to this company related to electrical, such as electric motor, Ceiling fan, cooler fan, geyser, heater, lighting unit, in addition, there are many electrical products which The company is building and is a trusted electric brand in India.

16 Slot Ceiling Fan Winding Data.



Crompton Greaves Ceiling Fan.

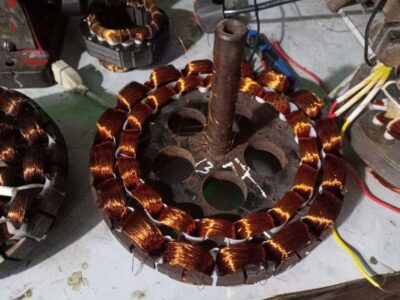

Crompton Greaves‘  had a model that is still available today, the HIGH BREEZE FAN, it was a very well-sold ceiling fan in India, the fan had a much Larger Winding Stator,

but its stamping was less near about 4 Soot, but Winding Stamping used to be very good, This fan used For Running for years without any problem.

Another feature of this fan that The Fan Is Running a little bit slow but had a very good Air-Flow of the air, a very good ceiling fan model from Crompton Greaves.

Crompton Greaves Ceiling Fan

Ceiling Fan Wiring Connection Diagram Pdf.

By looking at the Ceiling Fan Wiring Diagram of a ceiling fan connection, you will find out very easily how to make three-wire fan connections and how to make four-wire ceiling fan connections, so do check the ceiling fan Connection Diagram.

Ceiling Fan Connection | 4 wire ceiling fan capacitor wiring diagram

x
Ceiling Fan Connection | 4 wire ceiling fan capacitor wiring diagram video

Ceiling Fan Wiring Connection Diagram Pdf.
Ceiling fan-Wiring Connection-Diagram



Ceiling fan winding data sheet

The Ceiling fan winding data sheet is given in Detail below, you can very carefully note the Ceiling fan winding data and can rewind the ceiling fan very easily.

Ceiling fan winding TURN CALCULATION is very easy to do, you can very easily do Ceiling fan winding TURN CALCULATION by viewing the Ceiling fan winding data SHEET,

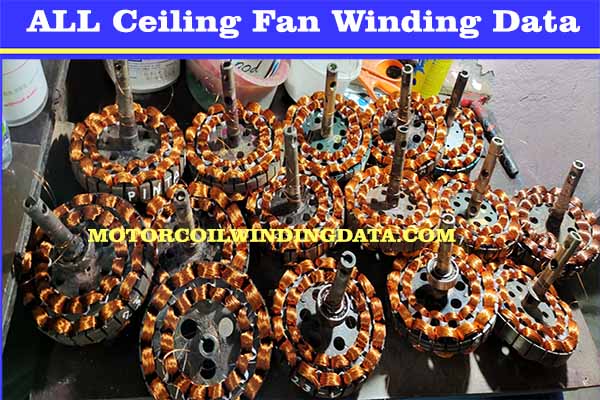

All Fan Winding Data.

Here You can watch All Ceiling Fan Winding Data and you can also check the link for All Ceiling Winding Data with more detail and you can also check Ceiling Fan Winding Data Sheet There.

12 Slot Ceiling Fan Winding Data.

SLOTS =12+12 = 24

STARTING TURNS= 380

RUNNING TURNS = 350

Staring Winding Wire Number = 36

Running Winding Wire Number = 36

   12 Slot Ceiling Fan Data Here

=====================================

14 Slot Ceiling Fan Winding Data.

SLOTS =14+14 = 28

STARTING TURNS= 350

RUNNING TURNS = 300

Staring Winding Wire Number = 35

Running Winding Wire Number = 34

   14 Slot Ceiling Fan Data Here

====================================

16 Slot Ceiling Fan Winding Data.

SLOTS =16+16 = 32

STARTING TURNS= 330

RUNNING TURNS = 310

Staring Winding Wire Number = 36

Running Winding Wire Number = 36

   16 Slot Ceiling Fan Data Here



High-Speed Ceiling Fan 4+4 Coil Winding Data Sheet.

   High-Speed Ceiling Fan 4+4



6+6 Ceiling Fan Winding Data Sheet Here.

   6+6 Ceiling Fan Winding Data



Crompton Greaves Ceiling Fan Price.

Crompton Greaves is one of the leading consumer companies in India with a 75+ years old brand legacy. As of February 2016, we are an independent company under professional management and have 2 business segments – Lighting and Electrical Consumer Durables. We market our products under the “Crompton” brand name in India and select export markets.

You can visit our Amazon Shop page for full detail and all Crompton Greaves Ceiling Fan Pricelist and all new updated models. Here you can see the Top 5 Ceiling Fan Price List In India. The link is given below.



Orient Ceiling Fan Price.

You can also visit our Amazon Shop page for full detail and all Orient Ceiling Fan Pricelist and all new updated models. Here you can see Top 5 Ceiling Fan Price List In India. Link is given below.

Luminous Ceiling Fan Price.

Here In Our Amazon Shop page for full detail and all Luminous Ceiling Fan Pricelist and all new updated models. Here you can see Top 5 Ceiling Fan Price List In India. Link is given below. You can also visit the Luminous Official Page Here.

You can have wood-paneled walls, murals with lively colours and antique statues to make your preferred style come alive. You can even have the smallest elements such as doorknobs and light switches tailored for your taste. But you’ll probably hit a roadblock when it comes to finding a ceiling fan for your luxurious interiors.

For a long time, ceiling fans have only been used as cooling devices untouched by aesthetics. The only choice you had was in the colour of the fan with the same structural design. That’s not the case anymore with the designer Signature Range of fans by Luminous that have been specially crafted for luxurious rooms.

With inspiration drawn from cities and cultures around the world, the Signature range has plenty of appeal for the sophisticated well-travelled consumer. Signature fans are available in four varied collections:
