Whirlpool washing machine motor winding data by the motor coil winding data.com Testing washing machine motor also covered in this post we have to describe how to winding Whirlpool Washing Machine motor winding data and connection

washing machine motor winding data
washing machine motor


WASHING MACHINE MOTOR WINDING DATA VIDEO IS HERE

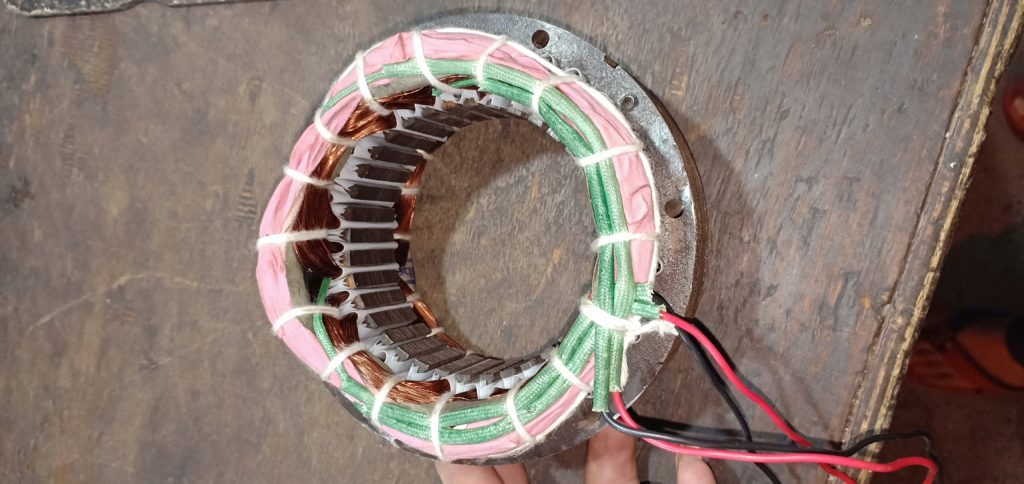

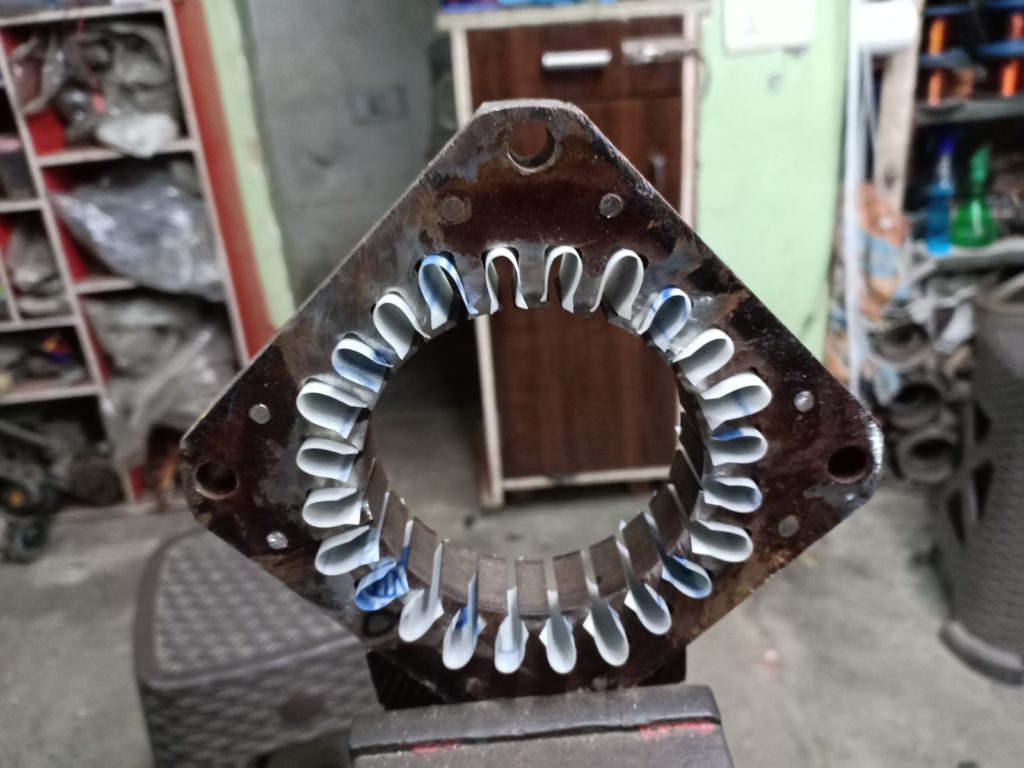

Whirlpool washing machine motor winding data

Core length             =   6.5 soot
Inner Diameter     =   2″5 soot
Outer Diameter    =   4 inch 1 soot

Slot.   24

Watts   370

Rpm 1440

4pole motor winding.

Capacitor 6 mfd in 220 volts to 240 volts.

6 mfd in the down voltage area.

Running pitch        1-4 and 1-6

Coil.                      1-4 (1 baar gumana)

Coil.                    1-6( 2 baar gumana hai)

Coil.  1-4.        1-6

Turn   150-.      300

Swg  (Standard wire gauge)  =  31

Testing wahing machine motor
washing machine



Washing Machine Spin Motor Winding

STARTING WINDING VIDEO IS HERE



Testing washing Machine Motor Staring Data

Starting pitch   1-4 and. 1-6

Coil.  1-4.      1-6

Turn 145.      290

Swg  =   32

Total coils 8pc

4 coils in running

      and

4coils in. starting

Coil size is 22 inch

(This is single speeds winding motor.)

Connection =Normal

spin motor winding
=====================
