0.5hp Motor Winding Data

0.5hp Motor Winding Data: Hello, Friends. I am Raj. In This Post, I described how We Can Rewind 0.5 hp 0.37 kW water pump motor winding data. You can also use this winding data in Kirloskar Pumps If Your Stamping is matched. This post also covers Tulu pump motor winding, domestic water pump motor winding data, and home water pump motor winding.

0.5hp เคฎเฅ‹เคŸเคฐ เคตเคพเค‡เค‚เคกเคฟเค‚เค— เคกเฅ‡เคŸเคพ: เคนเฅˆเคฒเฅ‹, เคฆเฅ‹เคธเฅเคคเฅ‹เค‚เฅค เคฎเฅˆเค‚ เคฐเคพเคœ เคนเฅ‚เค‚เฅค เค‡เคธ เคชเฅ‹เคธเฅเคŸ เคฎเฅ‡เค‚, เคฎเฅˆเค‚เคจเฅ‡ เคฌเคคเคพเคฏเคพ เค•เคฟ เค•เฅˆเคธเฅ‡ เคนเคฎ 0.5 hp 0.37 kW เคชเคพเคจเฅ€ เคชเค‚เคช เคฎเฅ‹เคŸเคฐ เคตเคพเค‡เค‚เคกเคฟเค‚เค— เคกเฅ‡เคŸเคพ เค•เฅ‹ เคฐเคฟเคตเคพเค‡เค‚เคก เค•เคฐ เคธเค•เคคเฅ‡ เคนเฅˆเค‚เฅค เคฏเคฆเคฟ เค†เคชเค•เฅ€ เคฎเฅ‹เคนเคฐ เค•เคพ เคฎเคฟเคฒเคพเคจ เค•เคฟเคฏเคพ เคœเคพเคคเคพ เคนเฅˆ, เคคเฅ‹ เค†เคช เค‡เคธ เค˜เฅเคฎเคพเคตเคฆเคพเคฐ เคกเฅ‡เคŸเคพ เค•เฅ‹ เค•เคฟเคฐเฅเคฒเฅ‹เคธเฅเค•เคฐ เคชเค‚เคชเฅ‹เค‚ เคฎเฅ‡เค‚ เคญเฅ€ เค‰เคชเคฏเฅ‹เค— เค•เคฐ เคธเค•เคคเฅ‡ เคนเฅˆเค‚เฅค เค‡เคธ เคชเฅ‹เคธเฅเคŸ เคฎเฅ‡เค‚ เคŸเฅเคฒเฅ เคชเค‚เคช เคฎเฅ‹เคŸเคฐ เคตเคพเค‡เค‚เคกเคฟเค‚เค—, เค˜เคฐเฅ‡เคฒเฅ‚ เคชเคพเคจเฅ€ เคชเค‚เคช เคฎเฅ‹เคŸเคฐ เคตเคพเค‡เค‚เคกเคฟเค‚เค— เคกเฅ‡เคŸเคพ เค”เคฐ เคนเฅ‹เคฎ เคตเคพเคŸเคฐ เคชเค‚เคช เคฎเฅ‹เคŸเคฐ เคตเคพเค‡เค‚เคกเคฟเค‚เค— เคญเฅ€ เคถเคพเคฎเคฟเคฒ เคนเฅˆเค‚เฅค

In this post, we have talked about the winding of the Water Motor Winding Data used in the house. Usually, our homes have a motor of 0.5 HP and power which works at 2800 Rpm. This motor rotates at 2800 RPM. With the help of this post, you can rewind the water motor very easily.

In the 0.5 Hp Water Motor Winding post, you have been told the easy way to rewind the water motor. With the help of this post, you can rewind the water motor very easily. The water motor will be 2800 rpm and work on 2 poles. The core length of the motor will be 24 watts. This motor is mentioned in the post of this motor.

Water Pump Motor Winding Details.

6 coils will be put in this Kirloskar Pump motor and six coils will be put up. The connection will be normal for this motor. You can also take out 4 wires from this motor. Two wires will be running winding and two wires will be starting winding. In this motor, you will have 7 Number Insulation Paper. You can use a white paper on the number.

You should not put a Green sheet in this motor because it has water, and due to this, its moisture content is high. Where the moisture content is high, the green sheet will not work, so you should use the white sheet in this motor. At the end of this post, you will also find videos related to this motor.

เค†เคชเค•เฅ‹ เค‡เคธ เคฎเฅ‹เคŸเคฐ เคฎเฅ‡เค‚ เคเค• เคนเคฐเฅ‡ เคฐเค‚เค— เค•เฅ€ เคšเคพเคฆเคฐ เคจเคนเฅ€เค‚ เคกเคพเคฒเคจเฅ€ เคšเคพเคนเคฟเค เค•เฅเคฏเฅ‹เค‚เค•เคฟ เค‡เคธเคฎเฅ‡เค‚ เคชเคพเคจเฅ€ เคนเฅˆ, เค”เคฐ เค‡เคธเค•เฅ‡ เค•เคพเคฐเคฃ, เค‡เคธเค•เฅ€ เคจเคฎเฅ€ เคธเคพเคฎเค—เฅเคฐเฅ€ เค…เคงเคฟเค• เคนเฅˆเฅค เคœเคนเคพเค‚ เคจเคฎเฅ€ เค•เฅ€ เคฎเคพเคคเฅเคฐเคพ เค…เคงเคฟเค• เคนเฅˆ, เคนเคฐเฅ€ เคถเฅ€เคŸ เค•เคพเคฎ เคจเคนเฅ€เค‚ เค•เคฐเฅ‡เค—เฅ€, เค‡เคธเคฒเคฟเค เค†เคชเค•เฅ‹ เค‡เคธ เคฎเฅ‹เคŸเคฐ เคฎเฅ‡เค‚ เคธเคซเฅ‡เคฆ เคถเฅ€เคŸ เค•เคพ เค‰เคชเคฏเฅ‹เค— เค•เคฐเคจเคพ เคšเคพเคนเคฟเคเฅค เค‡เคธ เคชเฅ‹เคธเฅเคŸ เค•เฅ‡ เค…เค‚เคค เคฎเฅ‡เค‚, เค†เคชเค•เฅ‹ เค‡เคธ เคฎเฅ‹เคŸเคฐ เคธเฅ‡ เคธเค‚เคฌเค‚เคงเคฟเคค เคตเฅ€เคกเคฟเคฏเฅ‹ เคญเฅ€ เคฎเคฟเคฒเฅ‡เค‚เค—เฅ‡เฅค

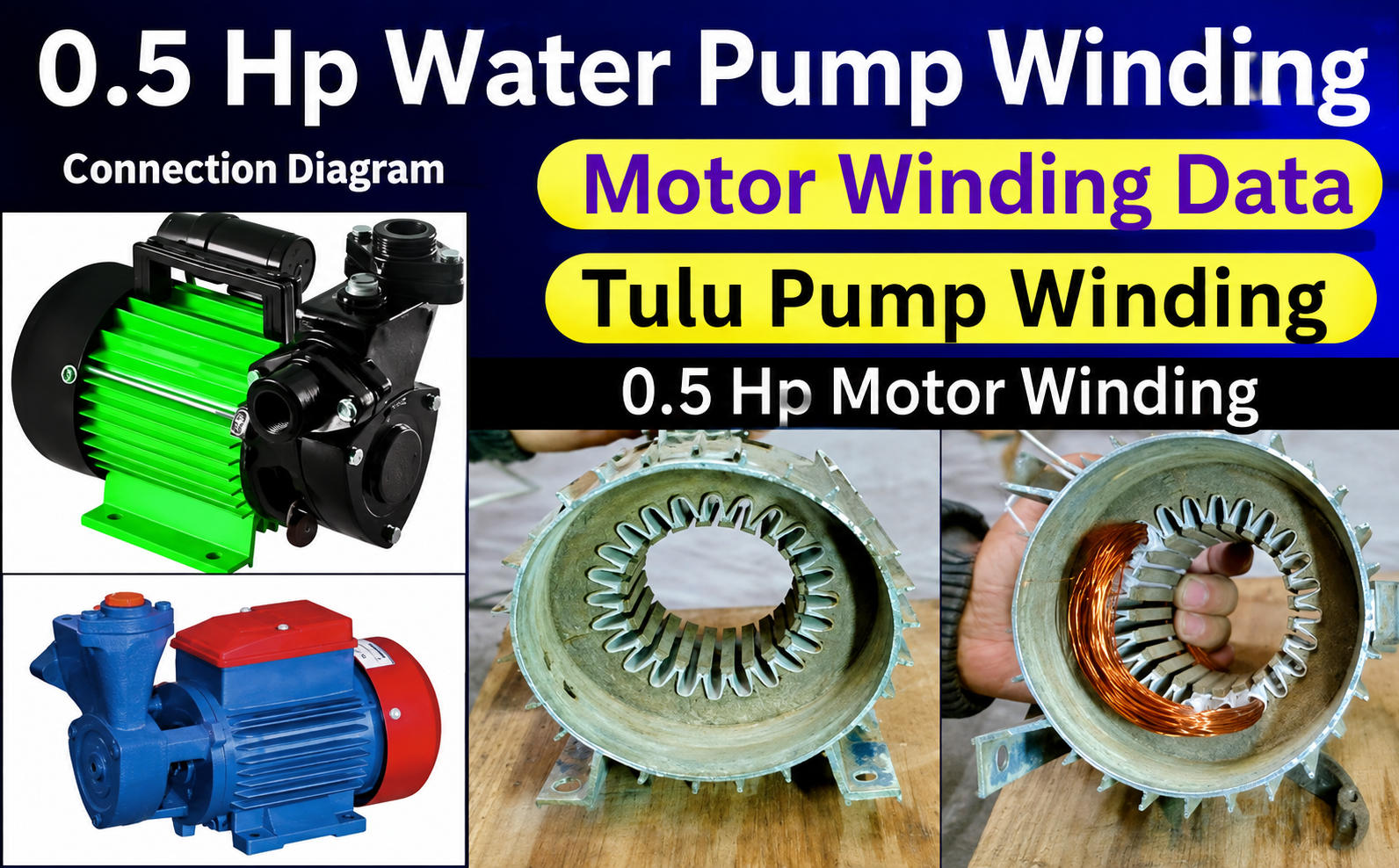

0.5Hp 0.37 kW Water Pump Motor Winding Data

0.5 HP Motor Full Winding Data

  • Slot=24
  • The core length of 2-inch
  • inner diameter  1โ€ณ5 soot
  • Out diameter  3โ€ณ5 soot.

  • Running Winding Pitch = 1-8 1-10 1-12
  • Water Pump Running Winding Turn = 90 90 90
  • SWG  =25 Number Copper Wire.
  • Winding Wire = Copper Wire
  • RUNNING WIRE WEIGHT 450 GM
  • เคฐเคจเคฟเค‚เค— เคตเคพเค‡เค‚เคกเคฟเค‚เค— เคชเคฟเคš = 1-8 1-10 1-12
  • เคตเคพเคŸเคฐ เคชเค‚เคช เคฐเคจเคฟเค‚เค— เคตเคพเค‡เค‚เคกเคฟเค‚เค— เคŸเคฐเฅเคจ = 90 90 90
  • SWG = 25 เคจเค‚เคฌเคฐ เค•เฅ‰เคชเคฐ เคตเคพเคฏเคฐเฅค
  • เค˜เฅเคฎเคพเคตเคฆเคพเคฐ เคคเคพเคฐ = เคคเคพเค‚เคฌเคพ เคคเคพเคฐ
  • เคฐเคจเคฟเค‚เค— เคตเคพเคฏเคฐ เคตเฅ‡เคŸ 450 เค—เฅเคฐเคพเคฎ
Water Pump Running Winding Data ( Motorcoilwindingdata.com )
Coil Pitch 1-8Coil Pitch 1-10Coil Pitch 1-12Standard Wire NumberTotal Wire Weight
Turns =85Turns =85Turns 8525 Number Copper Wire400 Gram

0.5 HP WATER PUMP MOTOR STARTING WINDING DATA HERE

  • Starting Coil Pitch = 1-8 1-10 1-12
  • Water Pump Running Winding Turn = 100 100 100
  • SWG  =27 Number Copper Wire.
  • Winding Wire = Copper Wire
  • RUNNING WIRE WEIGHT 300 GM
  • เค•เฅ‰เค‡เคฒ เคชเคฟเคš เคถเฅเคฐเฅ‚ เค•เคฐเคจเคพ = 1-8 1-10 1-12
  • เคชเคพเคจเฅ€ เคชเค‚เคช เค˜เฅเคฎเคพเคตเคฆเคพเคฐ เคฎเฅ‹เคกเคผ = 100 100 100
  • SWG = 27 เคจเค‚เคฌเคฐ เค•เฅ‰เคชเคฐ เคตเคพเคฏเคฐเฅค
  • เค˜เฅเคฎเคพเคตเคฆเคพเคฐ เคคเคพเคฐ = เคคเคพเค‚เคฌเคพ เคคเคพเคฐ
  • เคฐเคจเคฟเค‚เค— เคตเคพเคฏเคฐ เคตเฅ‡เคŸ 300 เค—เฅเคฐเคพเคฎ
0.5 Hp Staring Winding ( Motorcoilwindingdata.Com )
Coil Pitch 1-8Coil Pitch 1-10Coil Pitch 1-12Standard Wire NumberTotal Wire Weight
Turn =100Turns =110Turns =11027 Number Copper Wire300 Gram

0.5 hp water pump winding Connection.

0.5 hp water pump winding Connection,Tulu pump motor winding connection
0.5 hp water pump winding Connection,Tulu pump motor winding connection by motorcoilwindingdata.com

How To Rewinding Water Pump With Extra Joint Wire?

0.5 hp motor winding video

0.5 Hp Motor Most Usefull Videos Here:-

0.5 HP Motor Winding Video

0.5 Hp Motor Winding Video

Domestic Water Pump Motor Winding Video:-

Domestic Water Pump Motor Winding Video:-

0.37 Kw 0.5 Hp Motor Winding With Data Full Video:-

0.37 Kw 0.5 Hp Motor Winding With Data Full Video:-

Water Pump Motor Connection Video:-
