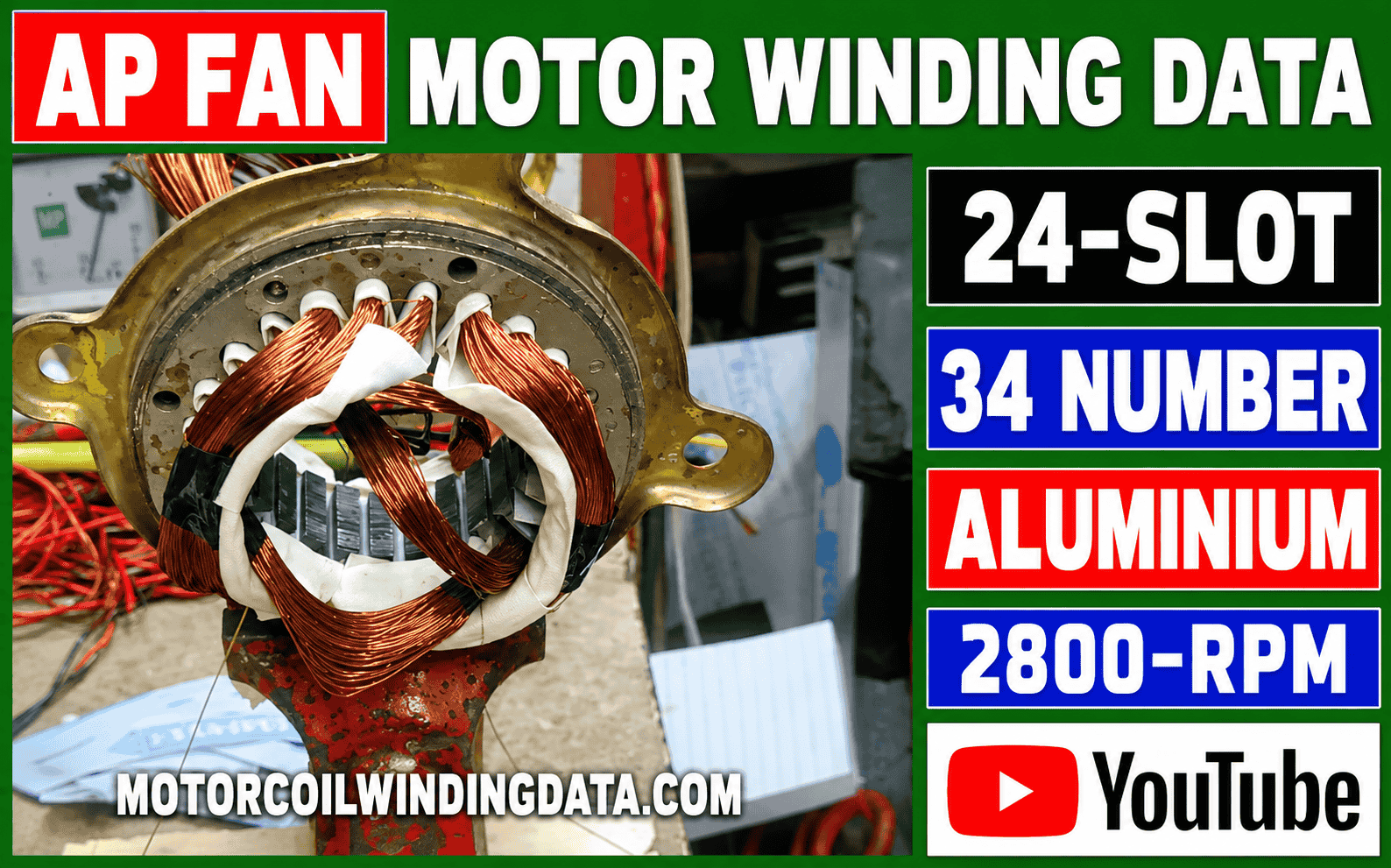

Aluminium Wire Ap Fan Motor Winding

ap fan winding data aluminum:- Aluminum Wire Ap Fan Motor Winding Data With 34 Number | All-Purpose Fan motor winding | With 34 Number | All-Purpose Fan motor winding | Buy AP Fan. Buy AP Fan.

Ap Fan Motor Winding:- Welcome To Motorcoilwindingdata.com in today’s post we will tell you how to Cooler motor winding in 2024.if you are facing an Ap Fan Motor Winding problem then definitely read this post till the end.

In this post you will get detailed answers to all the questions related to the Ap Fan Motor Winding

Ap Fan Motor Winding Data With 34 Number Aluminium Wire | All-Purpose Fan Motor Winding | Buy AP Fan. ap fan connection, Ap Fan Is Also Called a All Purpose Fan.

In This Post We Have Cover.

  • AP Fan Motor winding data
  • ap fan connection diagram
  • ap fan running winding data
  • ap fan starting winding data
  • ap fan fitting video
  • AP fan price
  • ap fan buy from our Amazon Shop

अगर आपको ए पी फेन का 36 नंबर तार से डाटा चाहिए तो नीचे दिए गए लिंक पर क्लिक करें.

AP FAN 36 scaled

अगर आपको ए पी फेन का 35 नंबर तार से डाटा चाहिए तो नीचे दिए गए लिंक पर क्लिक करें.

Ap Fan Motor Winding Details.

Power Supply = 220/240 Supply Voltage
HZ =50
Motor Type = All-Purpose Fan Motor
Watts = 270
Slot = 24
Rpm = 2800
Pole = 2
Capacitor Power = 3:15 Mfd
Winding Wire = ALUMINUM Wire
Water Pump Connection Diagram

AP फेन की मोटर में टोटल 24 स्लॉट होते है.इसमें 2 कएल नीचे औए दो ही कॉइल्स उपर डाले जाते है.अप फेन में एक हाई स्पीड मोटर होती है जो 2 पोल और 2800 आरपीएम पर काम करती है .Ap फेन की मोटर को आप 34,35,36  नंबर तार से रेविन्डिंग कर सकते है आप इसको कॉपर और एलुमिनियम दोनों तार से रेविन्डिंग कर सकते है लेकिन आज हम आपको इस पोस्ट में 34 नंबर एलुमिनियम तार से वाइंडिंग डाटा बताएँगे.Aluminium Wire Ap Fan Motor Winding

Aluminum Wire Ap Fan Motor Winding Data

Coil PitchCoil Turns.Swg Wire NumberCoil RoundsCoil Size
1-8270 Turns.34 Number Copper Wire.1 Round.Near About 27 Inch.
1-10270 Turn34 Number Copper Wire1 RoundNear About 27 Inch
1-12270 Turns34 Number Copper Wire1 Round27 INCH

Ap fan motor starting winding data:-

Coil PitchCoil Turns.Swg Wire NumberCoil RoundsCoil Size
1-8250 Turns.34 Number Copper Wire.1 Round.Near About 27 Inch.
1-10250 Turns34 Number Copper Wire1 RoundApproximate 27 Inch
1-12250 Turns34 Number Copper Wire1 Round27 Inch

CORE LENGTH  18 mm

रनिंग वाइंडिंग डाटा यहाँ पर देखें

Ap Fan Running Winding Data

Running winding pitch, 1-8,     1-10,       1-12,

Running winding turns 290 260 290 (each coil)

Running swg    =  34 नंबर एलुमिनियम तार

Coil size =27 INCH ( You can adjust it accordingly)

स्टार्टिंग वाइंडिंग डाटा यहाँ पर देखें

Ap Fan Starting Winding Data.

Starting pitch 1-8       1-10,       1-12

Coil Turns 260 260 260

Starting winding coil turns  250(each coil)

STANDARD WIRE G NUMBER = 34 नंबर एलुमिनियम तार.

Coil size =27 INCH ( You can adjust it accordingly)

AP फैन की मोटर में पेपर कौन सा पेपर डालना चाहिए.

एक फैन की मोटर को हो वाइंडिंग करते समय आप 7 नंबर का वाइट पेपर प्रयोग में लाएंगे अगर आप चाहे तो इस मोटर में GREEN SHEET भी डाल सकते हैं

ap fan motor winding data aluminum video:-

https://youtu.be/J-cyzfdua5k

AP-फेन मोटर वाइंडिंग का वीडियो यहाँ पर देखें

AP FAN ALUMINIUM WIRE WINDING DATA

AP- फेन की मोटर की फिटिंग कैसे करें.
