Cool Home Cooler Motor Winding Data With Copper Wire.36 Slot Cool Home Cooler Exhaust Fan Rewinding Cool home exhaust fan.cool home 18-inch exhaust fan motor winding data, Cool home blue colour Exhaust fan motor winding data with connection diagram. This cooler motor is also rewinding with 27+29 number copper wire.

Cool home cooler is an exhaust fan type motor and its size is too big.

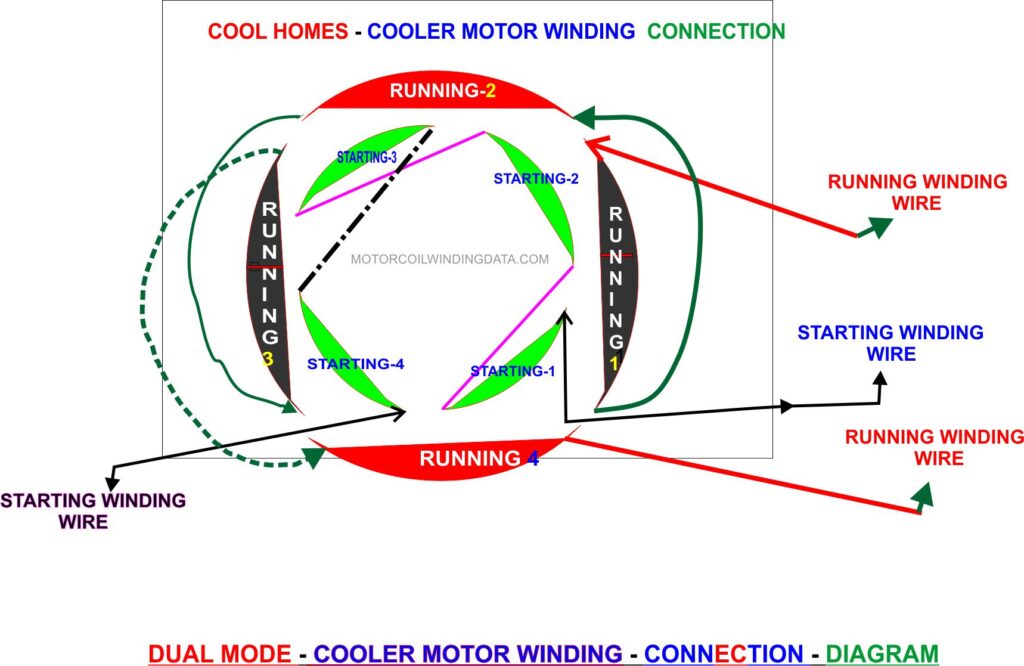

cool home cooler motor connection BY MOTORCOILWINDINGDATA.COM

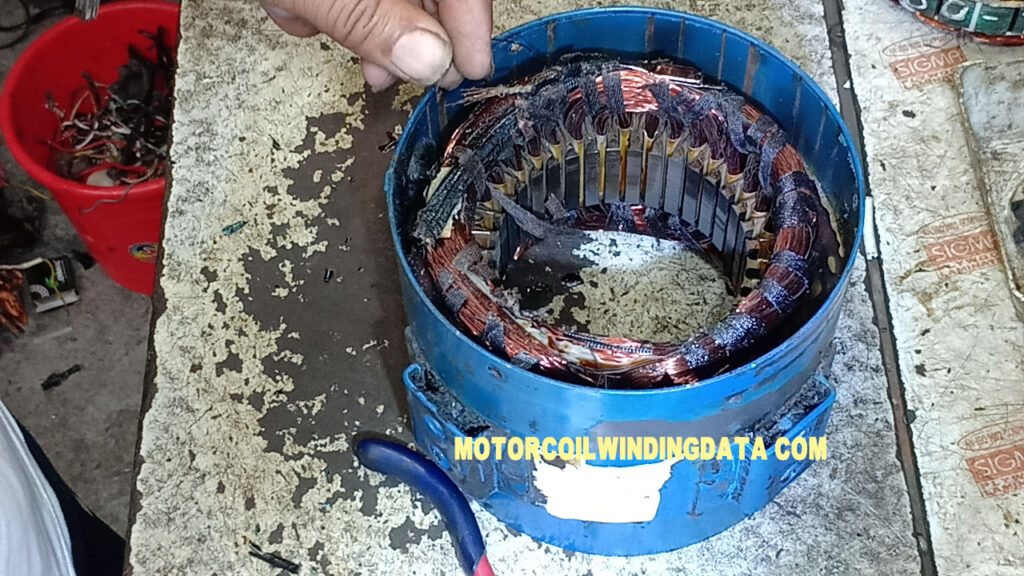

Single Speed Cool Home Cooler Motor Winding is very easy, in this post we have told how you can wind a 36 slot Cooler motor single speed winding. this motor is used in most coolers. Whenever the summer season starts, we need a cooler, and then these Cooler motors are rewinded because these motors are mostly defective during the summer season this motor is also known as Cool Home Cooler.

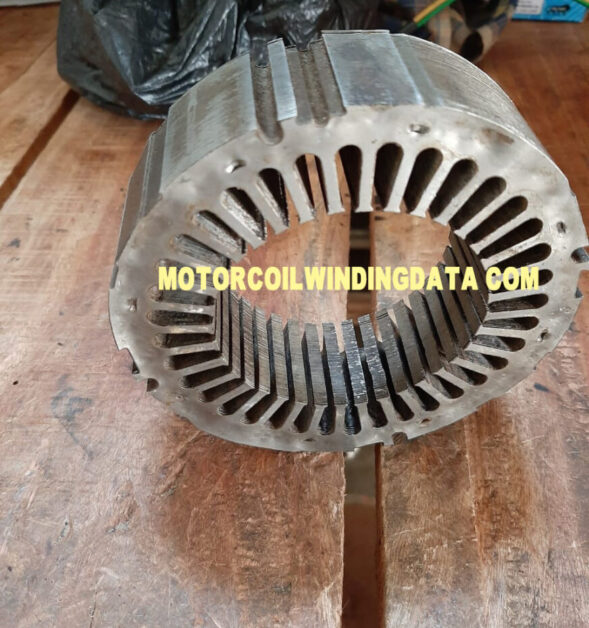

cool home cooler motor winding data.


Core length                  1 inch 4 सूत
inner diameter              3 inch
outer diameter              5 inch

Slot.   36

watts 350

Rpm 1440

Capacitor  = 6 MFD

4 pole motor winding.

capacitor 4 mfd in 220 volts to 240 volts.

8 mfd in the down voltage area.

VOLTS  =220

RPM = 1440

Single Phase Supply

Winding wire = Copper Wire.

कूल होम स्टार्टिंग वाइंडिंग डाटा यहाँ देखें

Running pitch             1-5 1-7 1-9

Running Turns             130      130 130

Coil ROUNDED ONCE IN EACH COIL.

All coils me Ek Baar Gumana

 Running Winding Swg Number   =   27 ( Wire Number )

कूल होम स्टार्टिंग वाइंडिंग डाटा यहाँ देखें

Starting pitch   1-6 and. 1-8 1-10

Coil Pitch.            1-6.      1-8 1-10

Coil Turn              135.      135 135

Swg Starting Motor Winding     =   29 ( Wire Number ) COPPER-WIRE

Total coils 8 pc
