The biggest problem that comes after motor winding is the motor winding connection. Connections are made in different ways in different Types Dips: why and how to do this exercise sun pharmaceuticals arm strength training program (biceps / triceps) in triset. Of Motors. In these some motor connections are normalized, some motor winding connections are done in 3 SPEED. Some motorsWinding Connection With Three wires, in the same way, 4 Wire Motors Winding are taken out from many motors and this whole game is of connection diagram.
Many times the speed of the motor can be reduced and increased by changing the Motor Winding Connection diagram just and only by entering the SAME COILS, the SAME TURN from SAME WIRE number, it’s working normally with Table Fan Motor winding Connection Diagram

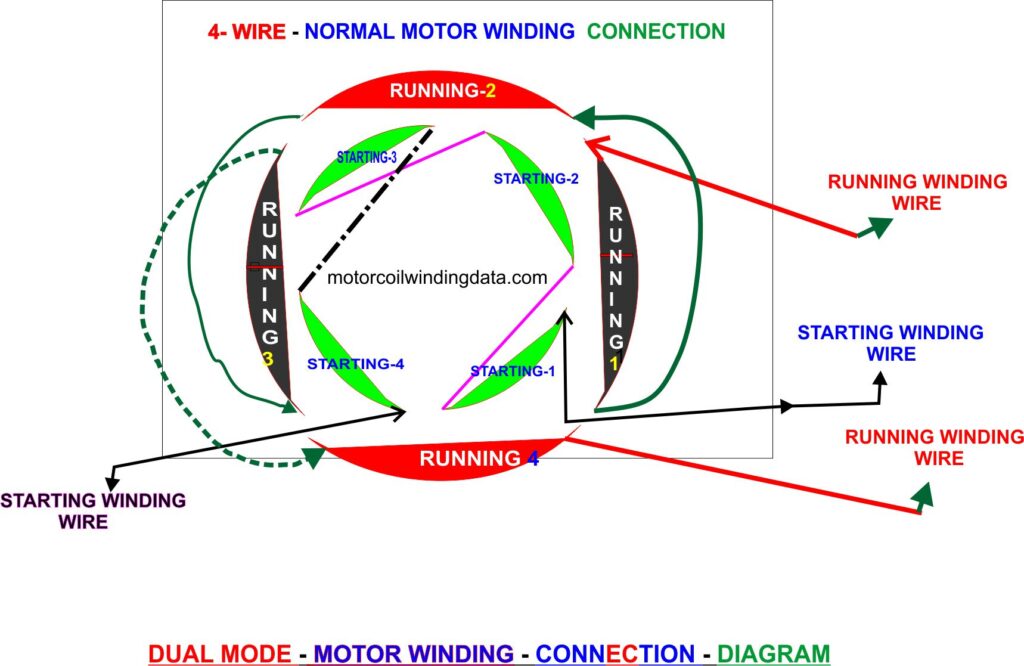

4 Wire Motor Connection Diagram
Out of the 4 wires in a 4-wire motor, two wires are of the running winding and only two of the starting winding.
The wire which comes out of the running winding of the motor is usually connected with a Red-colored wire. And the two stars which come out of the starting winding of the motor are mostly Black wire. The running and starting winding of the motor is identified by the help of the color code itself. All types of motors have a load on the running winding.
Single Phase Motor Connection.
And in some motors, the starting winding is inserted only and only to start the motor as soon as the motor is turned to its full speed than with the help of a clutch plate, DISCONNECT the Starting winding from the running winding of that motor. It is given and later it is used only by the running winding of the motor which is mostly in single face motor which ranges from 1HP to 3HP.

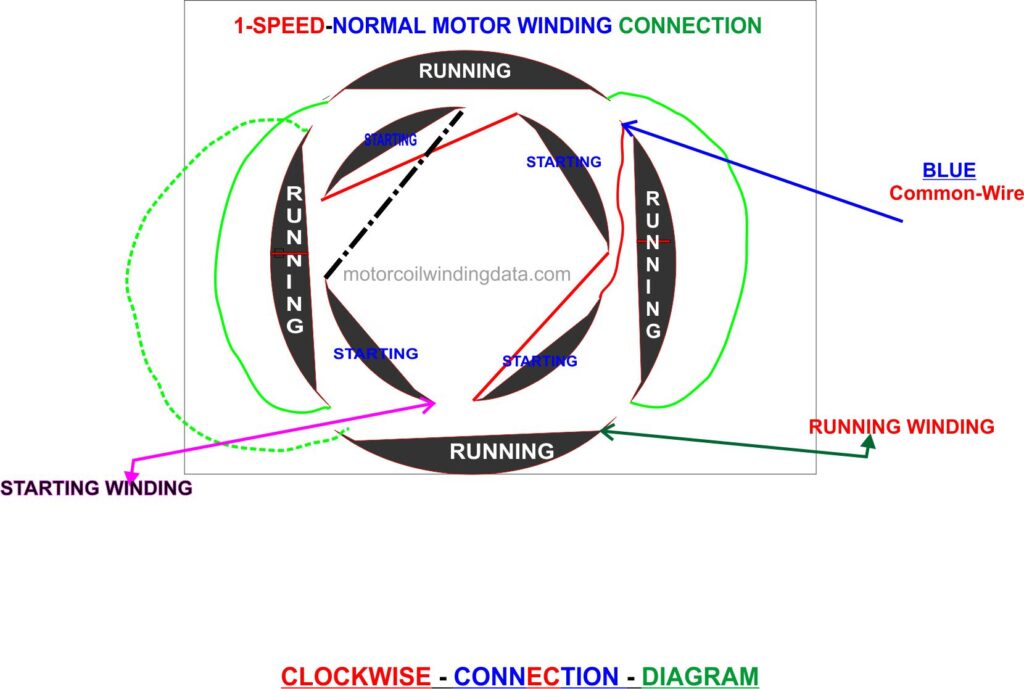

Three Wire Motor Winding Connection Diagram.
In a 3-wire motor, three wires are drawn out from the winding of the motor. Among these, one wire is COMMON WIRE and the other wire is of the running winding, and the third wire is drawn in the starting winding.
The Blue wire is connected directly to the NEUTRAL WIRE coming from the main power supply coming from the back, and the Red Wire and Black wire are connected to a capacitor. The black wire is tightly connected to the capacitor and the same is connected with the second wire of the capacitor to the red wire coming from the running winding, along with the wire facing the power supply coming from the back.
You can very easily make connections to a 3 wire motor by looking at all the wires in the connection diagram below.

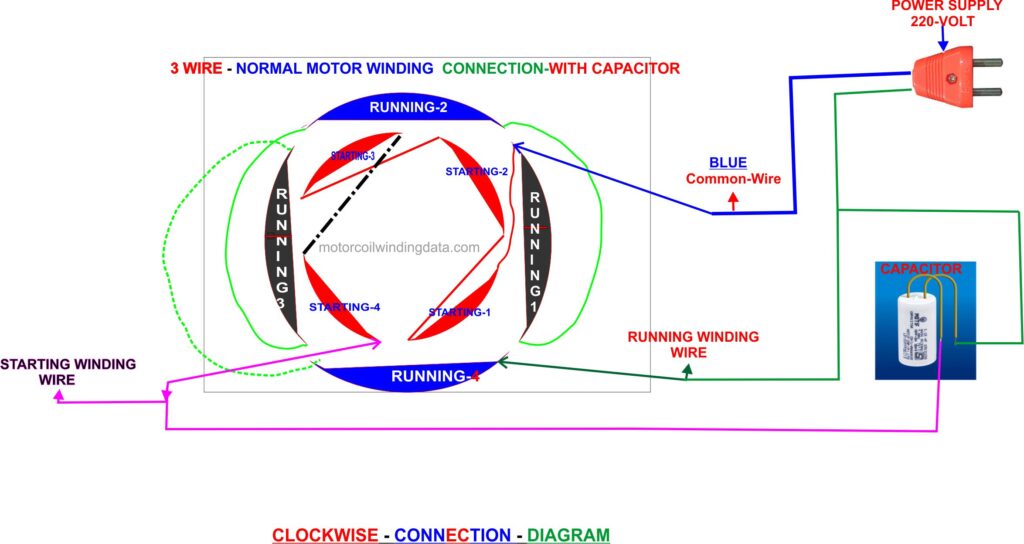

Three-Wire Motor Connection With a Capacitor.
COMMON WIRE is mostly With Blue in colour.
The Colour of RUNNING WINDING WIRE is mostly Red Wire.
The Colour of STARTING WINDING WIRE is mostly Black.Wire.
You can make this Connection with These Types Of motor.
- Table fan motor winding.
- Wall fan motor winding.
- Cooler motor winding.
- Ac Motor Winding.
- Single Phase motor winding.
- Exhaust fan motor winding.
- Single Speed Motor winding.
- 24 Slot Cooler Motor Winding.
- 36 Slot Cooler Motor Winding.

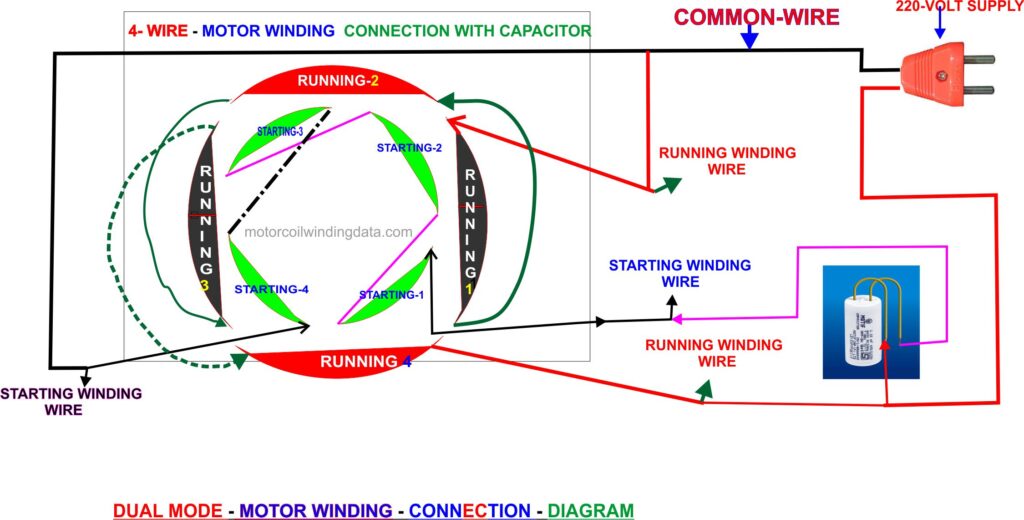

Four Wires Motor Connection With Capacitor.
The motor whose winding comes out of 4 wires consists of 2 wires of running winding and only two are the stars of the starting winding of the motor. The red running wire is often attached to the running winding of the motor and similarly, black wire is added to the starting winding of the motor.
Red wire and black wire are joined together to make the mind wire. Which is connected to the neutral wire of the 220-volt power supply coming from the back?
The remaining red and black wire is connected directly to a capacitor. The black wire is connected firmly to the capacitor when a wire from the red wire is removed and the 220-volt power coming from the back is supplied. Is connected with a string containing PHASE
You Can Also Make This Connection With These Types Of Motor.
- Table fan motor winding
- Wall fan motor winding
- Cooler motor winding
- Ac Motor Winding
- Single Phase motor winding
- Exhaust fan motor winding
- Single Speed Motor winding
3 Wire Motor Connection With Capacitor.
In a Three-wire motor, the Blue wire is made COMMON WIRE which is connected to the NEUTRAL WIRE of 220-volt power supply coming from the rear.
And the remaining two stars are drawn in it, one is Red and the other is black, the red wire comes out of the running winding, and the black wire comes out of the starting winding of the motors.
The red and black wire is connected directly to the capacitor, and the second wire of the 220 VOLTS power supply coming from the back is connected to the red wire of the motor winding. In this, the rounding of the motor is set up from the inside and directly inside the winding of the motor….

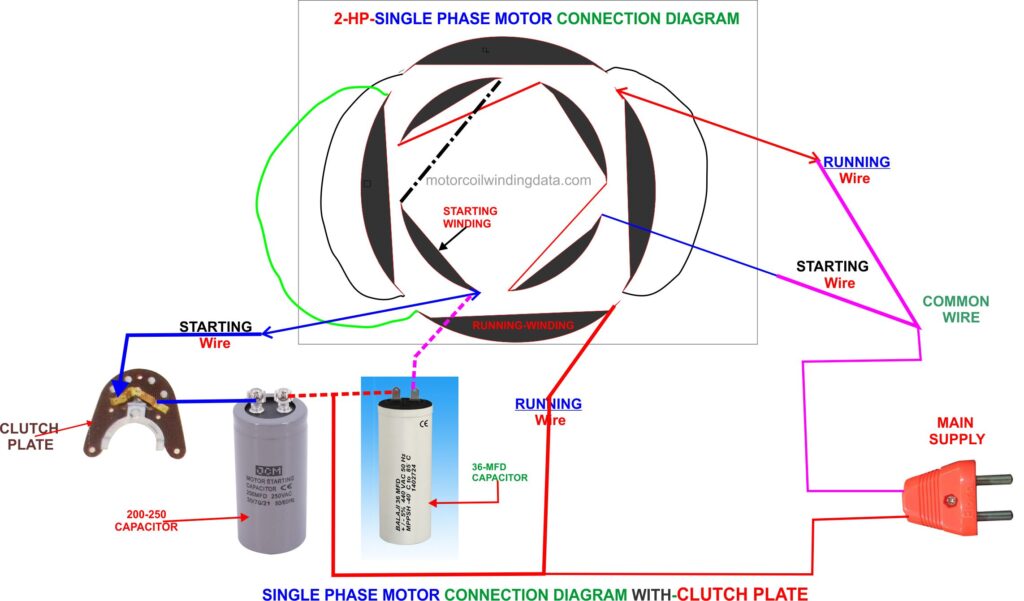

Single Phase Motor Connection Diagram.

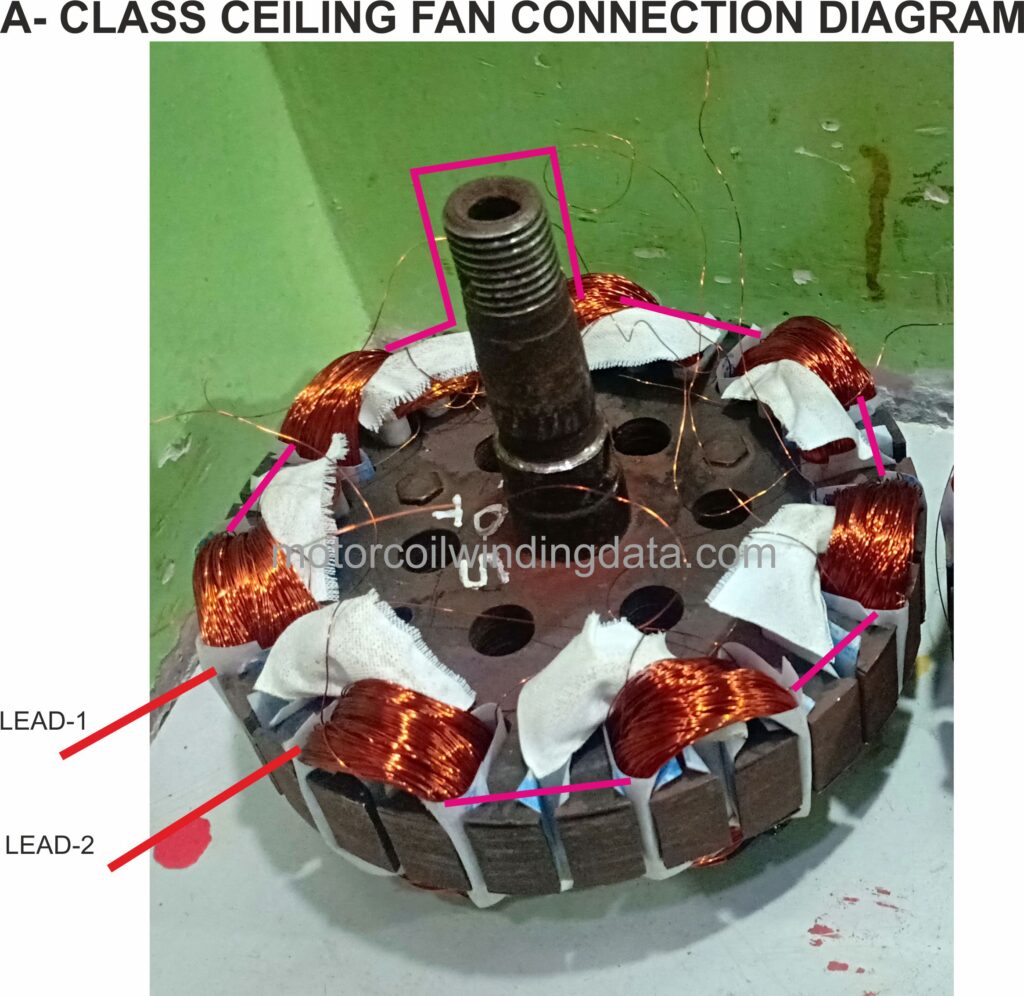

A Class Ceiling Fan Connection Diagram.
Three Wire Ceiling Fan Connection Diagram With Capactitor.
Cooler Motor Connection Diagram Video Watch Here:-
Three Phase induction motor winding connection with diagram
Star Delta Connection Diagram Of Three-Phase Motor Winding.
Three Phase Motor Winding Connection Video Watch Here:-
Ceiling Fan Three Wire Connection Diagram.
Table Fan Connection Diagram.
